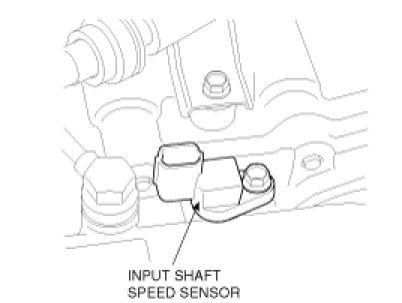

Input Speed Sensor
DescriptionInput Shaft Speed Sensor- Type: Hall sensor
- Current consumption: 22mA (MAX.)
- Sensor body and sensor connector have been unified as one.

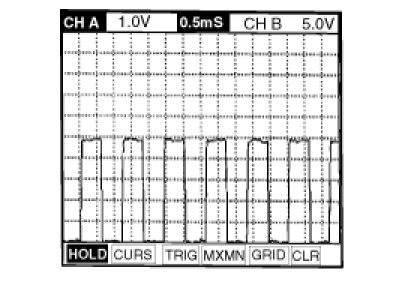

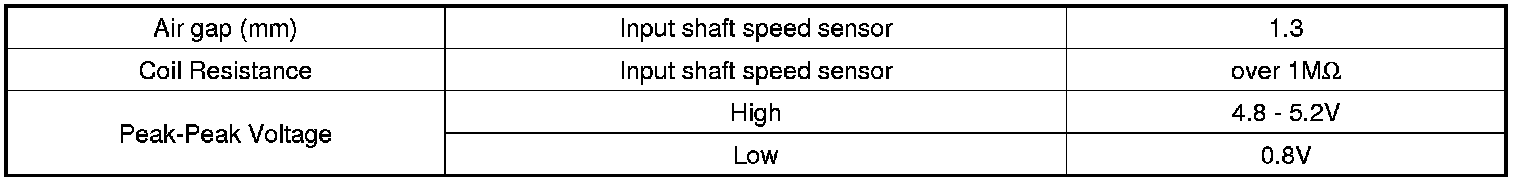

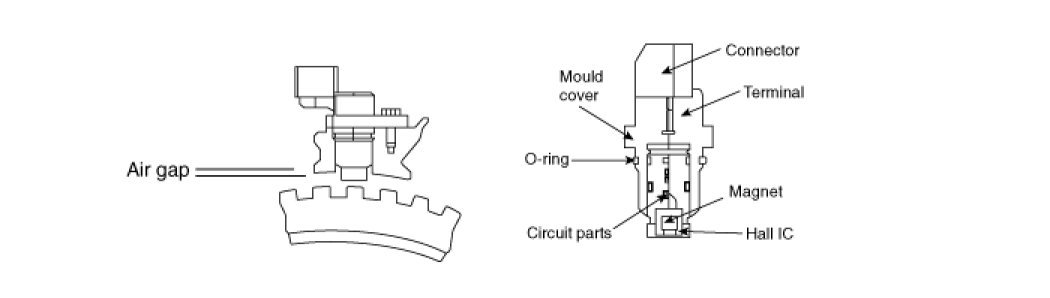

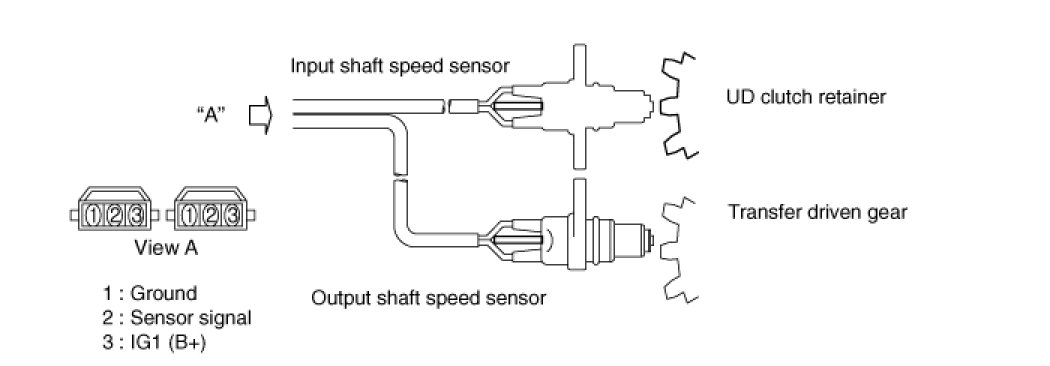

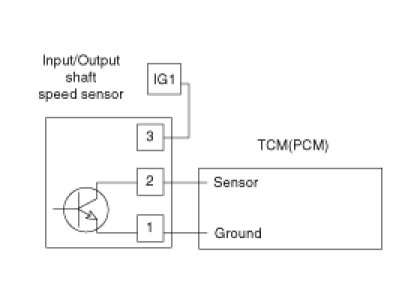

Hall Type Sensor: SpecificationWave Form With High-scanHall Type Sensor: Structure & Interface
