Transmission Temperature Sensor/Switch: Testing and Inspection
Inspection 1.

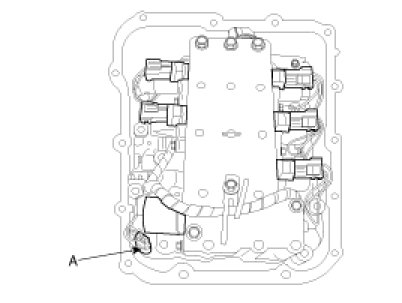

Remove the oil temperature sensor(A).
2.

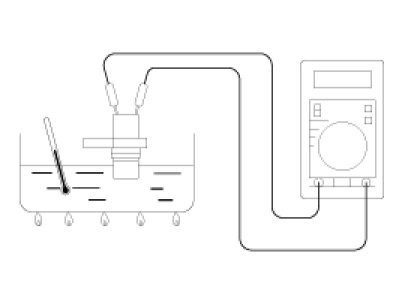

Measure the resistance between the terminal 1 and 2 of the sensor connector.
3.

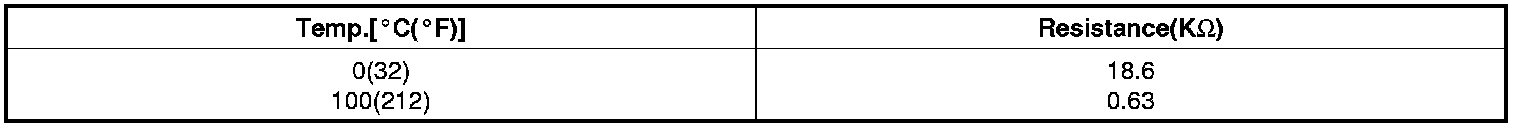

If the value is out of the specification, replace the oil temperature sensor.
