Front Door Window Glass: Service and Repair

Replacement

Glass Replacement

NOTE:
Put on gloves to protect your hands.

1. Remove the door trim.

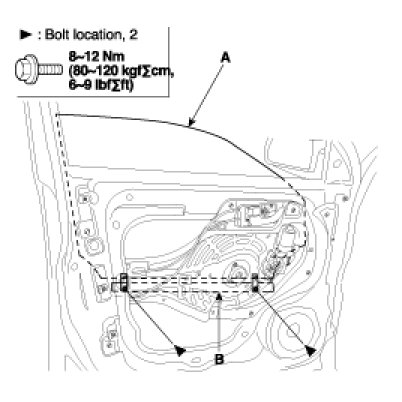

2. Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot (B).

CAUTION:
Take care not to drop the glass and scratch the glass surface.





3. Installation is the reverse of removal.
A. Roll the glass up and down to see if it moves freely without binding.
B. Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
C. Adjust the position of the glass as necessary.
