Front Door

Rear Channel Replacement
1. Remove the door trim.
2. Remove the glass.
3. Loosen the rear channel mounting nuts.

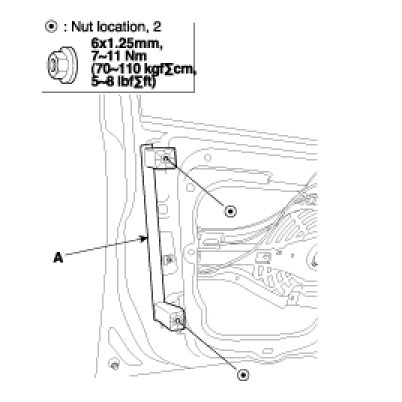

4. After disconnecting the glass molding, remove the rear channel (A).

5. Installation is the reverse of removal.
