Wiper and Washer Systems: Testing and Inspection





Windshield Wiper

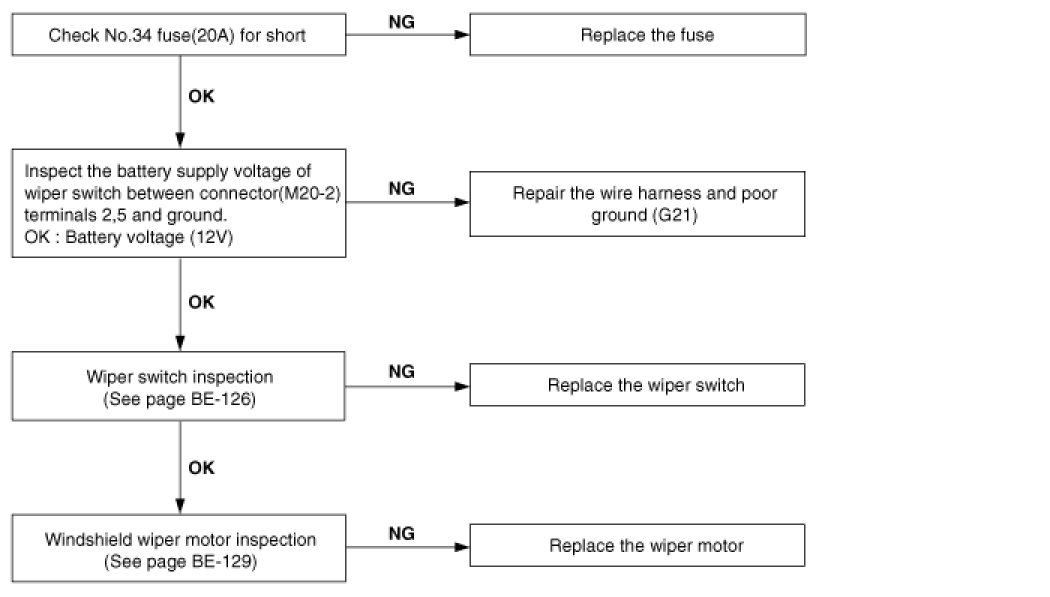

1. Wiper low and wiper high does not work.

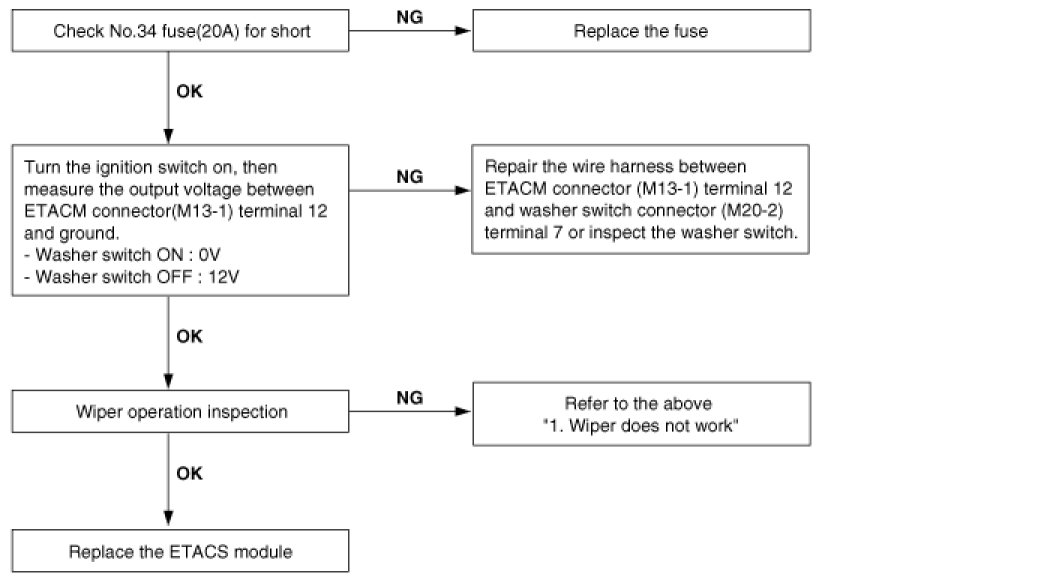

2. When washer switch is on, wiper does not work.
