Windshield Washer Motor: Service and Repair

Removal

CAUTION:
- When servicing the washer pump, be careful not to damage the washer pump seal.
- Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.

1. Disconnect the negative(-) battery terminal.
2. Remove the front bumper cover.
(see BD group-front bumper)
3. Remove the washer hose and the washer motor connector.

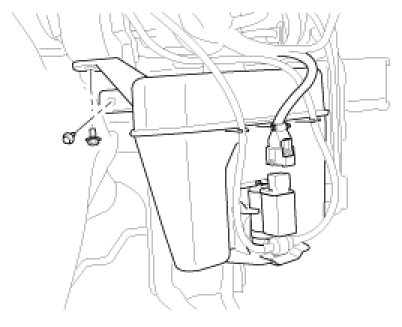

4. Remove the washer reservoir after removing 2 bolts.




5. Installation is the reverse of removal.

NOTE:
Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.
