Repair Procedures





Removal

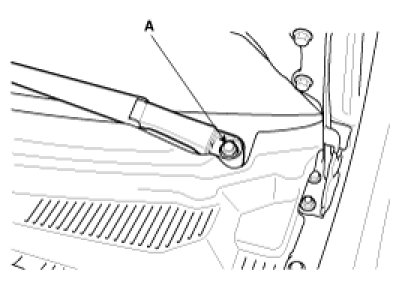

1. Detach the wiper cap, then remove the windshield wiper arm and blade after removing a nut(A).





Tightening torque
28 - 33 Nm (280 - 330 kgf-cm, 20.2 - 23.8 lbf-ft)

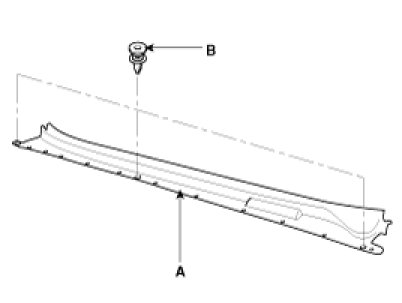

2. Remove the weatherstrip then remove the cowl top cover(A) after removing 3 screws(B).

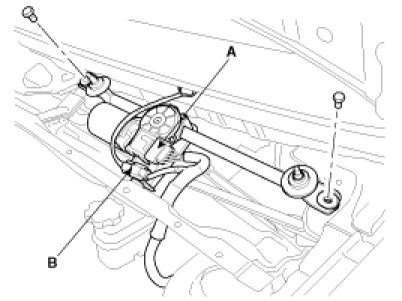

3. Remove the windshield wiper motor and linkage assembly after removing 2 bolts.
Disconnect the wiper motor connector(A) and windshield deicer connector(B) from the wiper motor & linkage assembly.





Tightening torque
7 - 11 Nm (70 - 110 kgf-cm, 5.1 - 8.0 lbf-ft)


4. Installation is the reverse of removal.

Installation

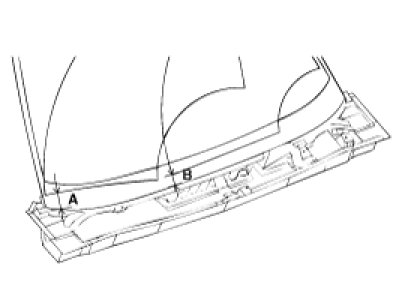

1. Install the wiper arm and blade to the specified position.

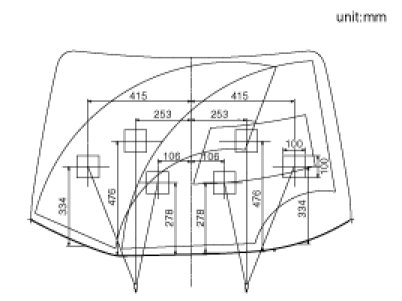

2. Set the washer nozzle on the specified spray position.
