Component Inspection

Air Conditioner

Air Conditioner - B1242 Evaporator Sensor Open (High) - Component Inspection

Component Inspection

Check evaporator sensor
1. Ignition "OFF"
2. Disconnect evaporator sensor.

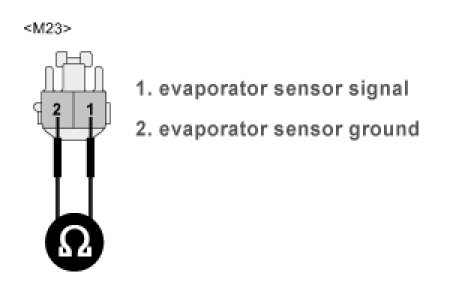

3. Measure resistance between terminal "1" and "2" of evaporator sensor.

Specification : Refer the specifications in fig 3)








4. Is the measured resistance within specifications in fig 3)? (tolerance limits ±3%)
