Monitor DTC Status

TPMS

Tire Pressure Monitoring System - C1315 Sensor 4 RF channel Failure - Monitor Scantool Data

Monitor Scantool Data

1. Connect 'TPMS exciter' or scantool to Data Link Connector (DLC).
2. Select "TPMS DIAGNOSIS" mode.
3. Select the "FULL" mode of "TPM DATA VALUES" function.
4. Monitor the parameters of 'Rear Right WE sensor (S4)' on the 'TPMS exciter' or scantool.

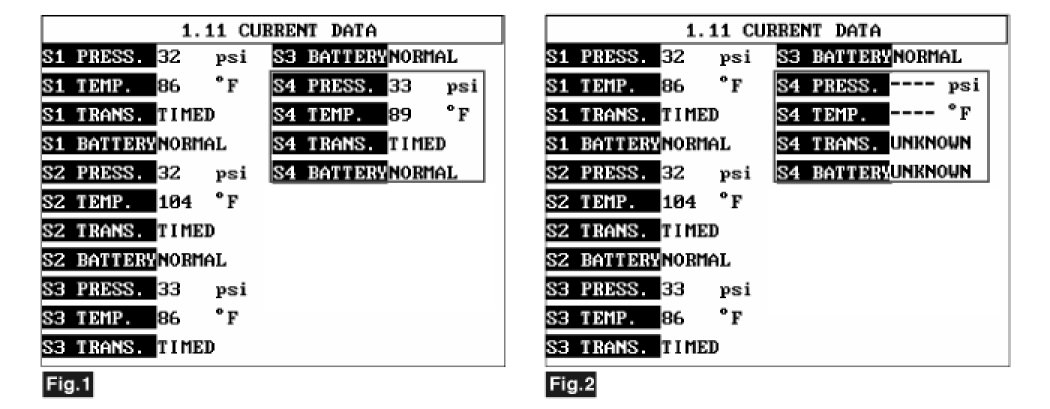

Fig.1) Sensor current data (normal)
Fig.2) Sensor current data (failure)
Fig.3) Connect the DLC for 'TPMS exciter'
5. Are parameters normal?
YES
1) Fault is intermittent. It has been repaired and TPMS receiver module memory is not cleared yet.
2) Go to "Verification of vehicle Repair" procedure.
NO
1) Check for vehicle interference sources.
2) Repair if necessary and then go to "Verification of Vehicle Repair" procedure.
