Connecting Rod, Engine

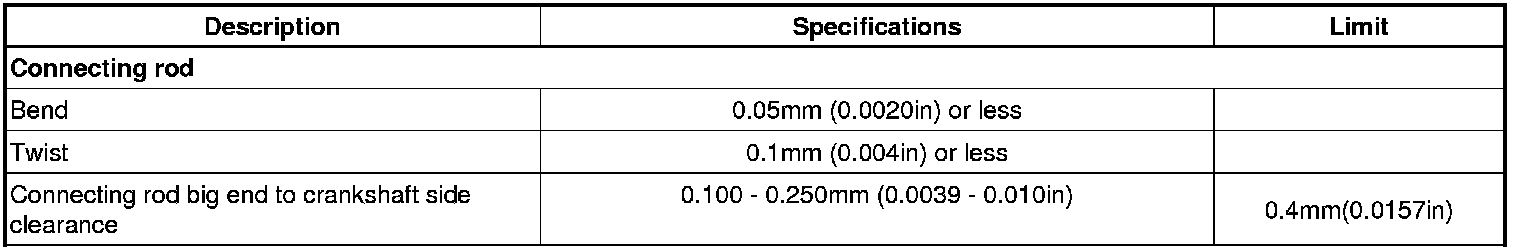

Connecting Rod






Standard end play 0.1 - 0.25 mm (0.004 - 0.010 in)
Maximum end play 0.4 mm (0.016 in)

Connecting Rod Cap Nut

Tightening torque 49.0 - 52.0 Nm (5.0 - 5.3 kgf.m, 36.2 - 38.3 lb-ft)
