Timing Chain Tensioner





Timing Chain Tensioner

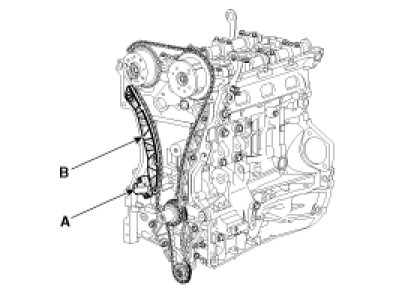

Install the timing chain auto tensioner (A) and remove the set pin.

Tightening torque 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
