Front Door Window Glass: Adjustments





Adjustment

Glass Adjustment

NOTE:
- Check the glass run channel for damage or deterioration, and replace them as needed.

1. Remove the following parts:
A. Quadrant inner cover.
B. Door trim.

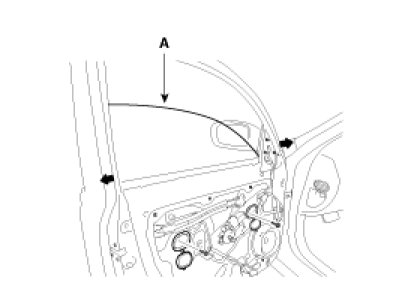

2. Carefully move the glass (A) until the glass mounting bolts are visible, then loosen them.




3. Check that the glass moves smoothly.
4. Raise the glass fully, and check for gaps. Check that the glass contacts the glass run channel evenly.

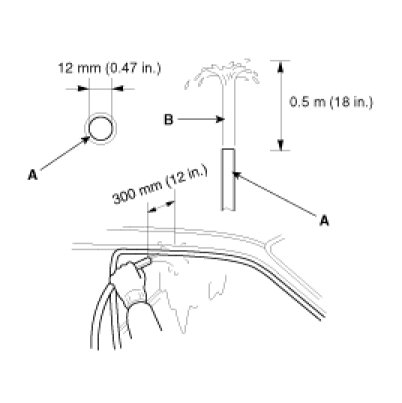

5. Check for water leaks. Run water over the roof and on the sealing area as shown, and note these items:
A. Use a 12mm (1/2in.) diameter hose (A).
B. Adjust the rate of water flow as shown (B).
C. Do not use a nozzle.
D. Hold the hose about 300mm(12in.) away from the door.
