Module Assembly Replacement

Replacement

Module Assembly Replacement
1. Remove the following parts:
A. Door trim
B. Window glass
C. Outside handle

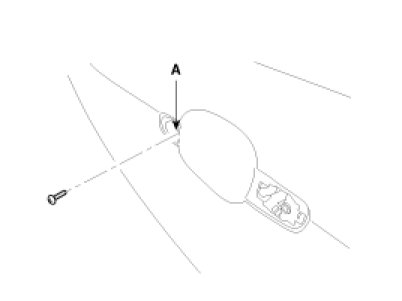

2. Loosen the mounting screw (A).

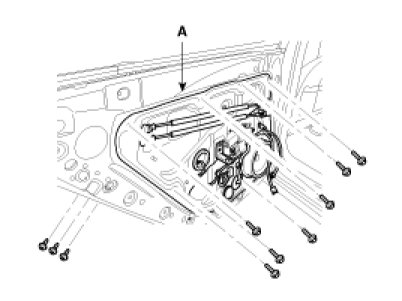

3. After loosening the door module mounting bolts, remove the door module (A).

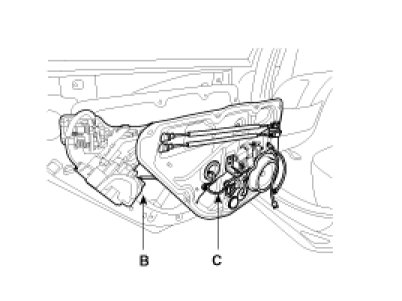

4. Disconnect the connector (B).
5. Detach the clips, then remove the wiring harness (C).




6. Installation is the reverse of removal.

NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure door lock operates and open/closes properly.
