Keyless Entry: Description and Operation

Description

Burglar Alarm system
The Burglar Alarm system is a theft protection feature which ;
Armed by
- Turning the mechanical key lock switch in driver side door.
- By RKE or Passive LOCK command.
- All door lock and then all door closed.

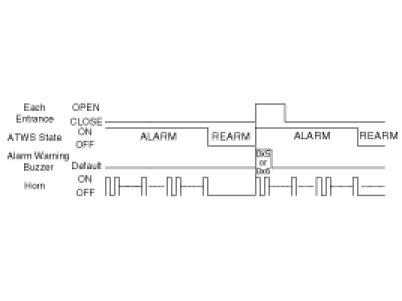

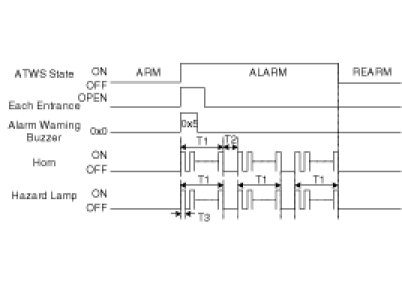

Triggers an Alarm when
- Any doors open.
- Hood open.

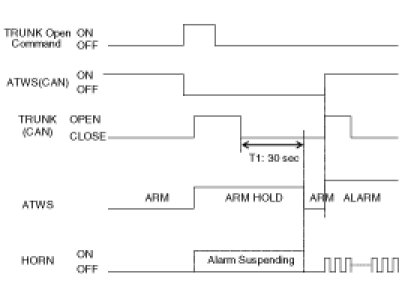

- Trunk open by unknown event.
- (Key In = ON) or (IGN1 IPM = ON) or (IGN2 IPM = ON) event only in China variant.
Disarmed by
- Turning the mechanical key unlock switch in driver side door.
- By RKE or Passive UNLOCK command.

Operation

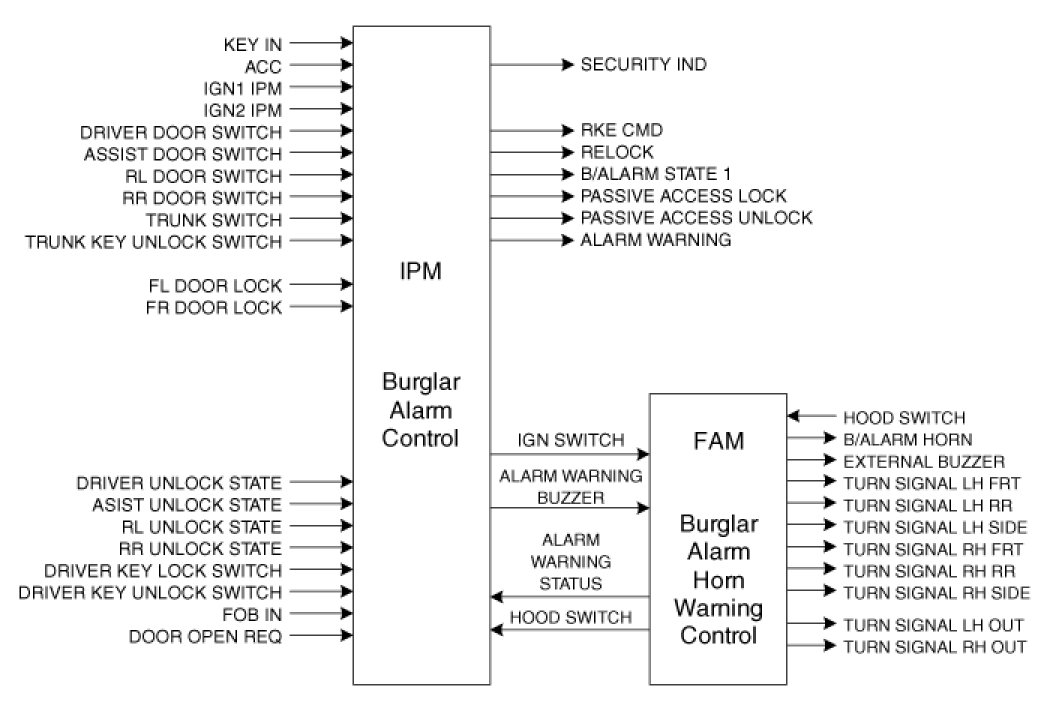

IPM Bugler alarm

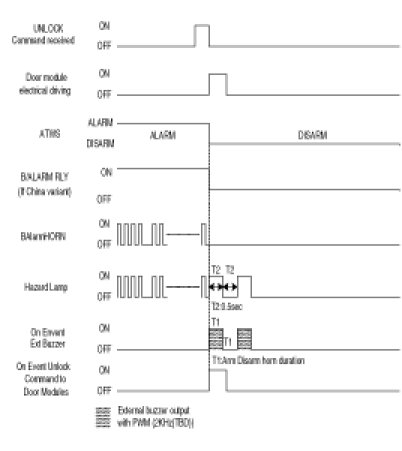

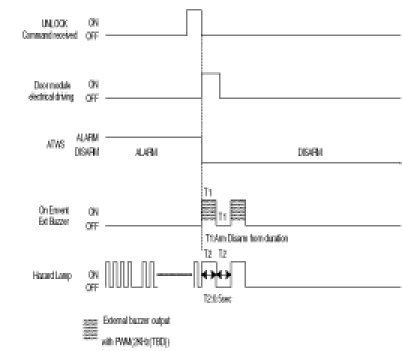

DISARM
LED is Blinking if IGN KEY OUT = TRUE, otherwise LED OFF.
If ATWS state is changed to DISARM, IPM shall cancel 5sec lock confirmation timer.

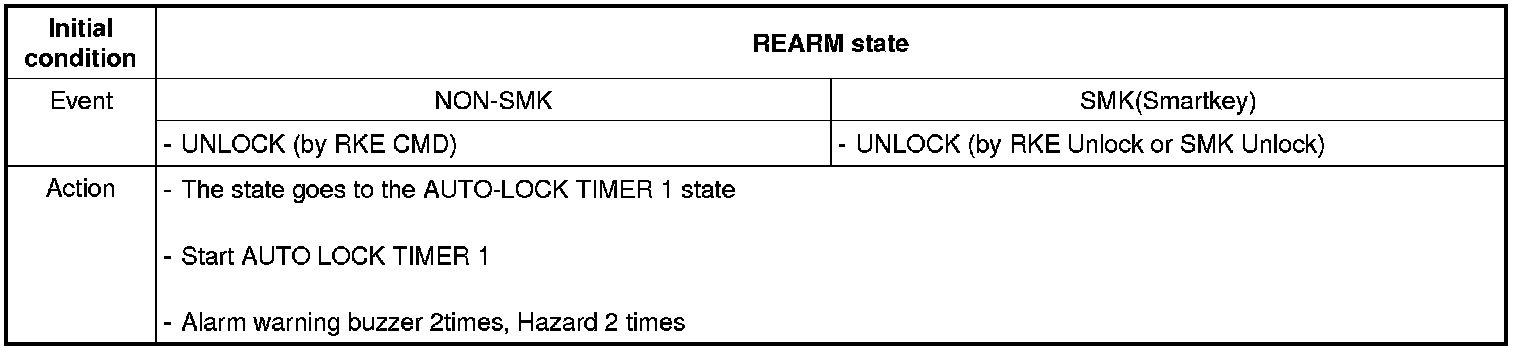

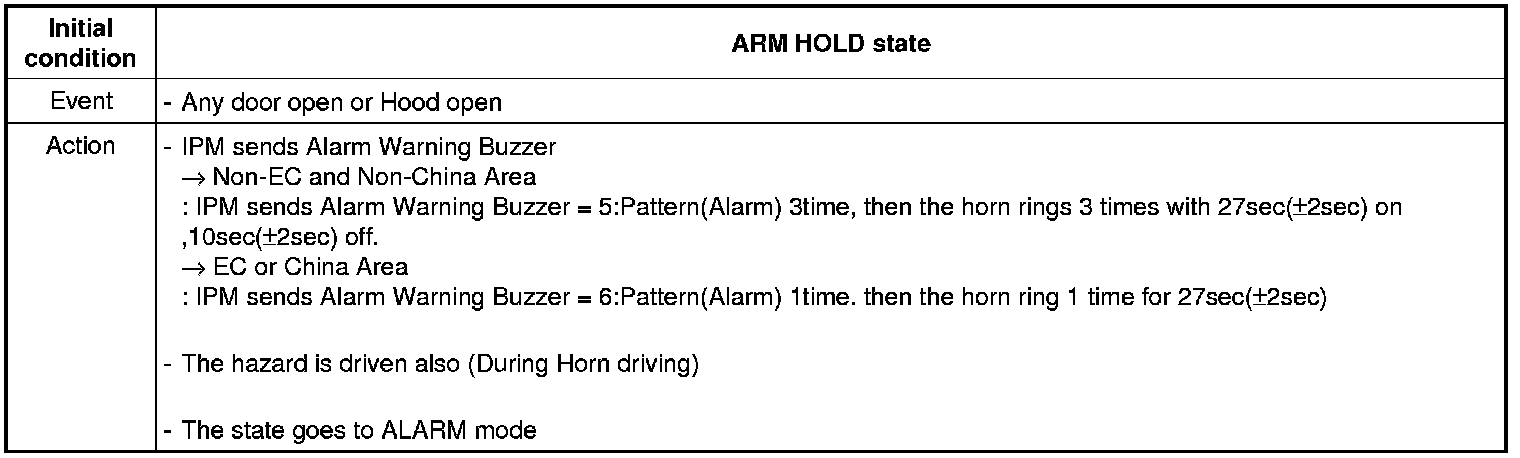

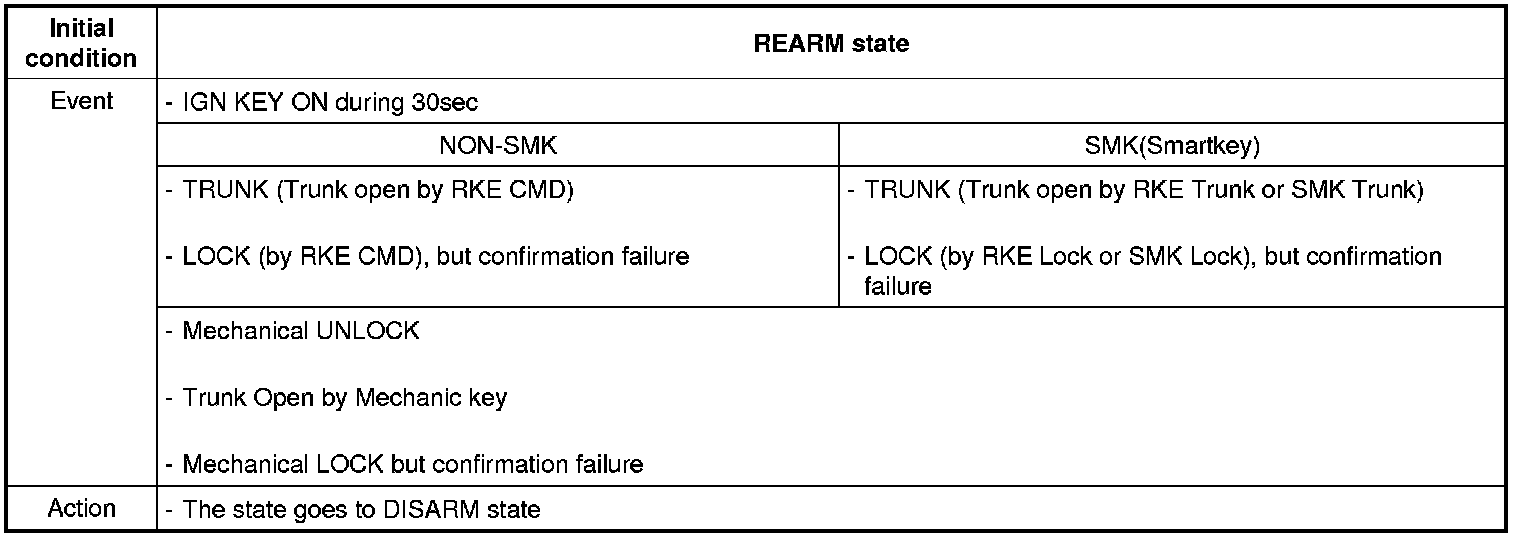

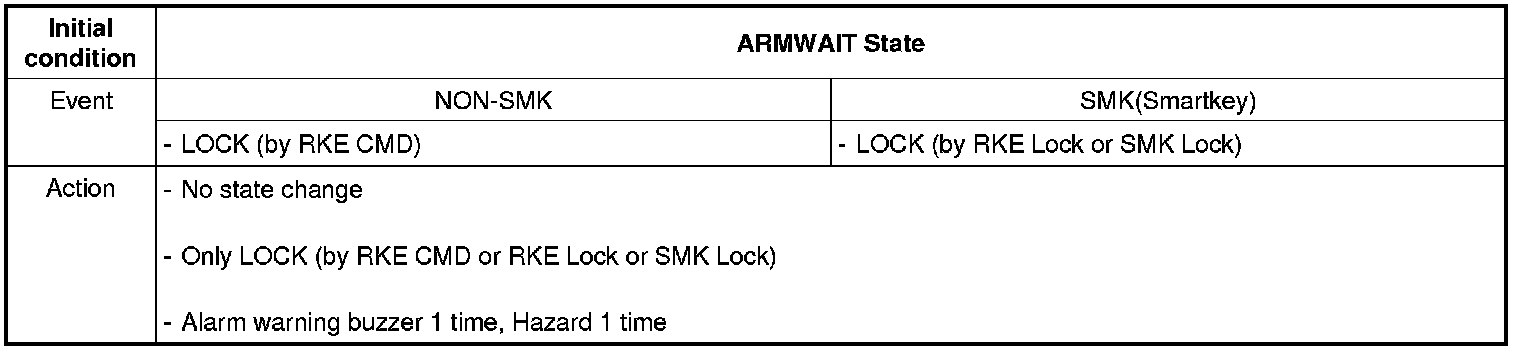

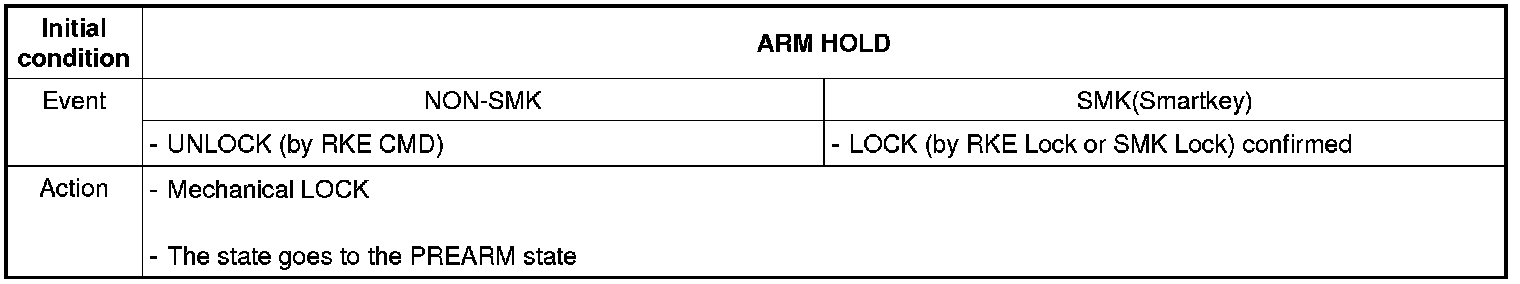

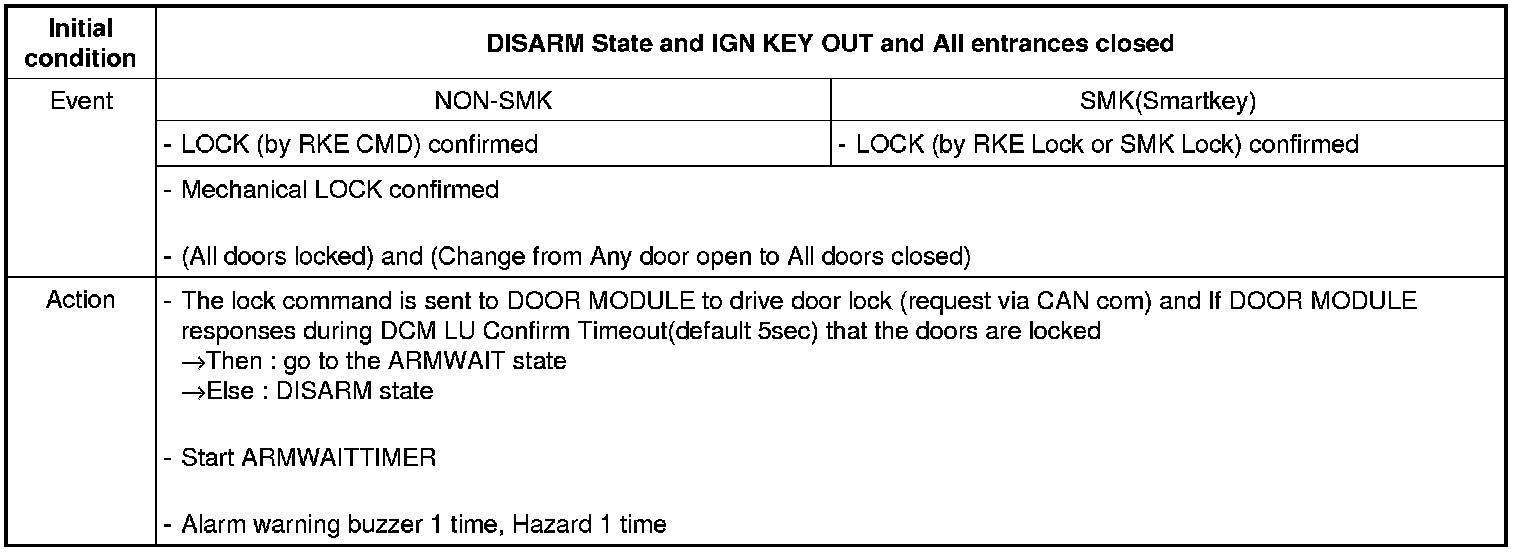

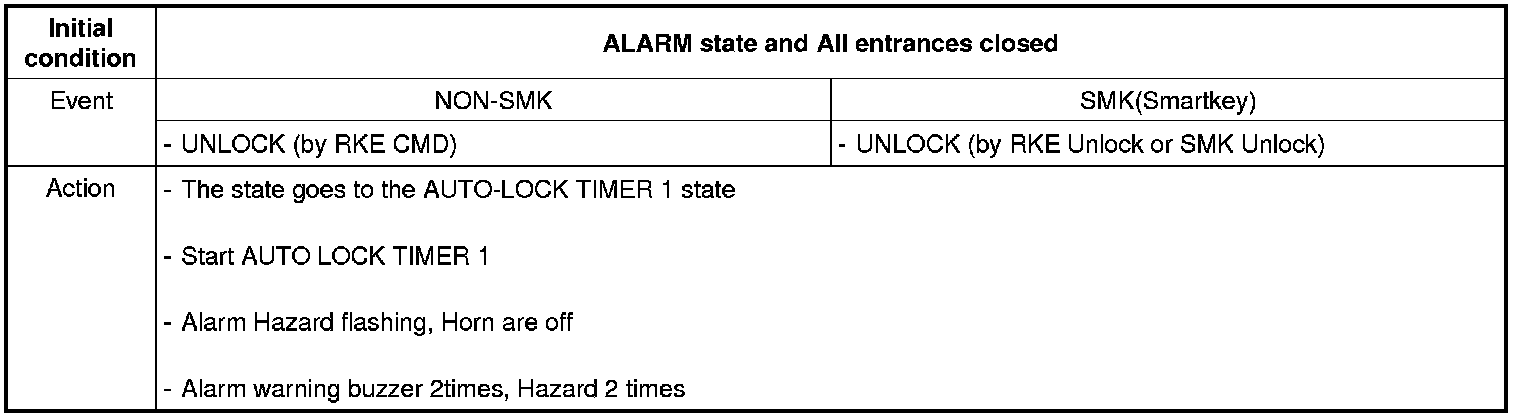

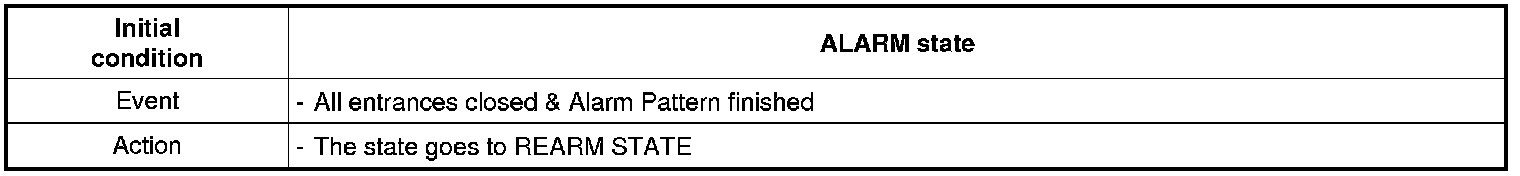

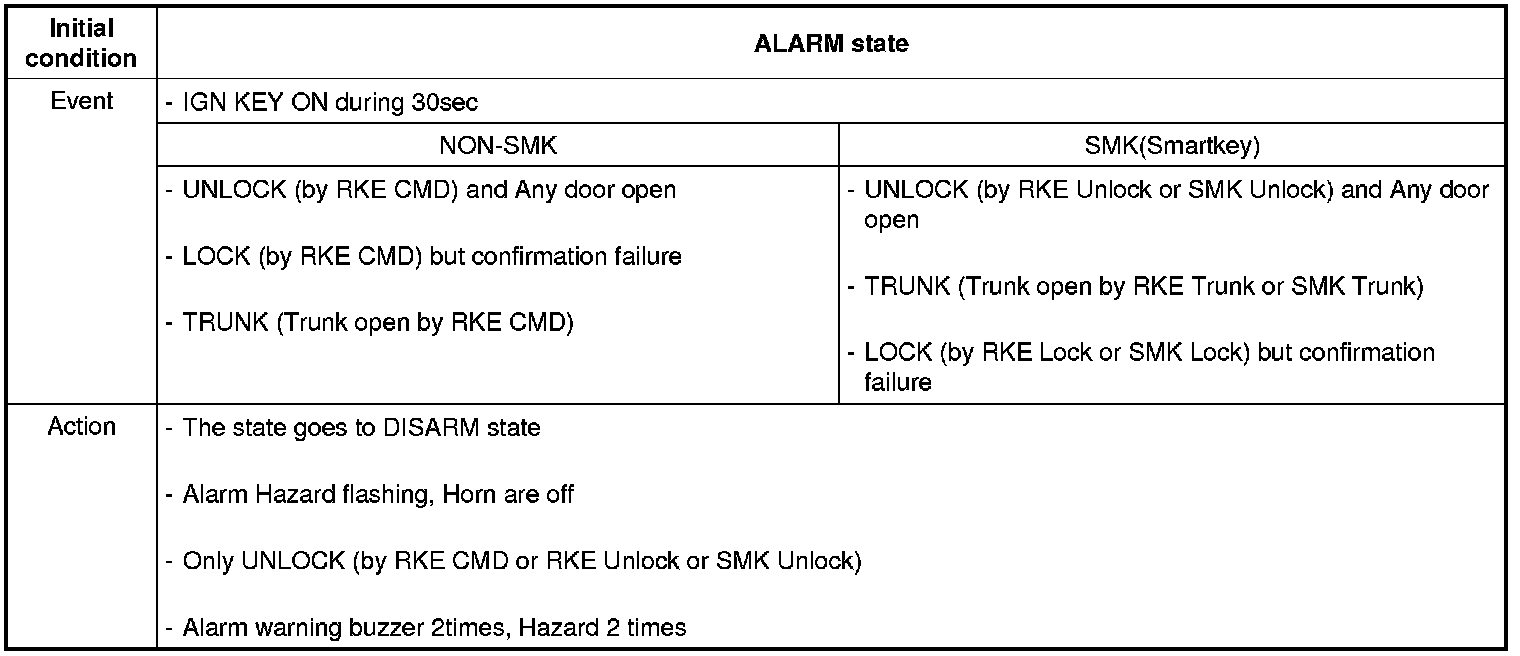

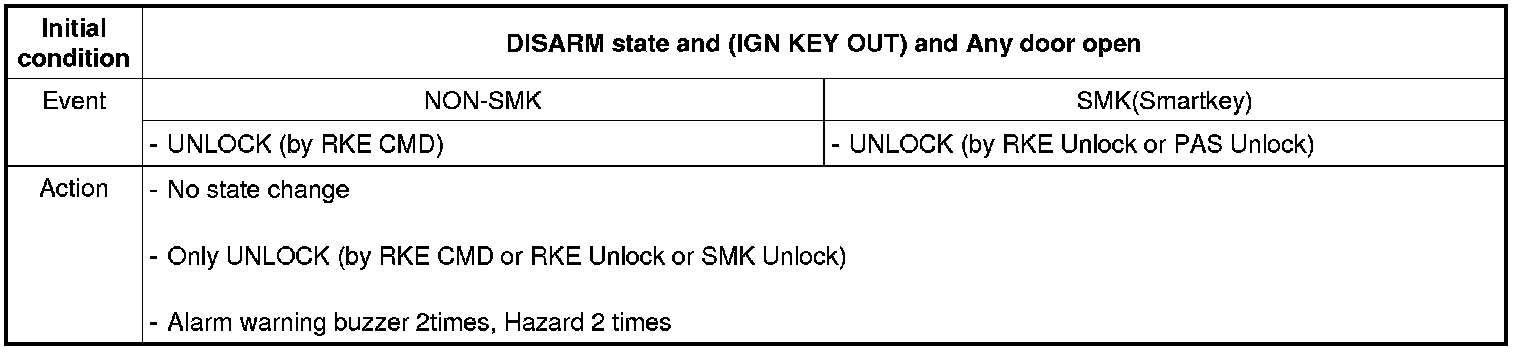

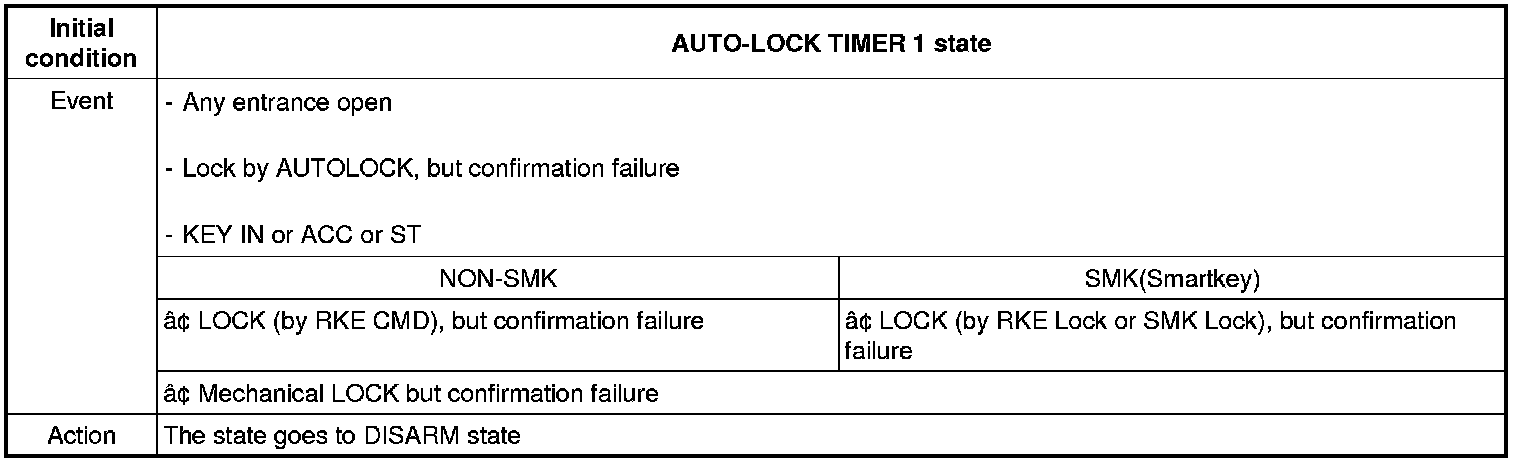

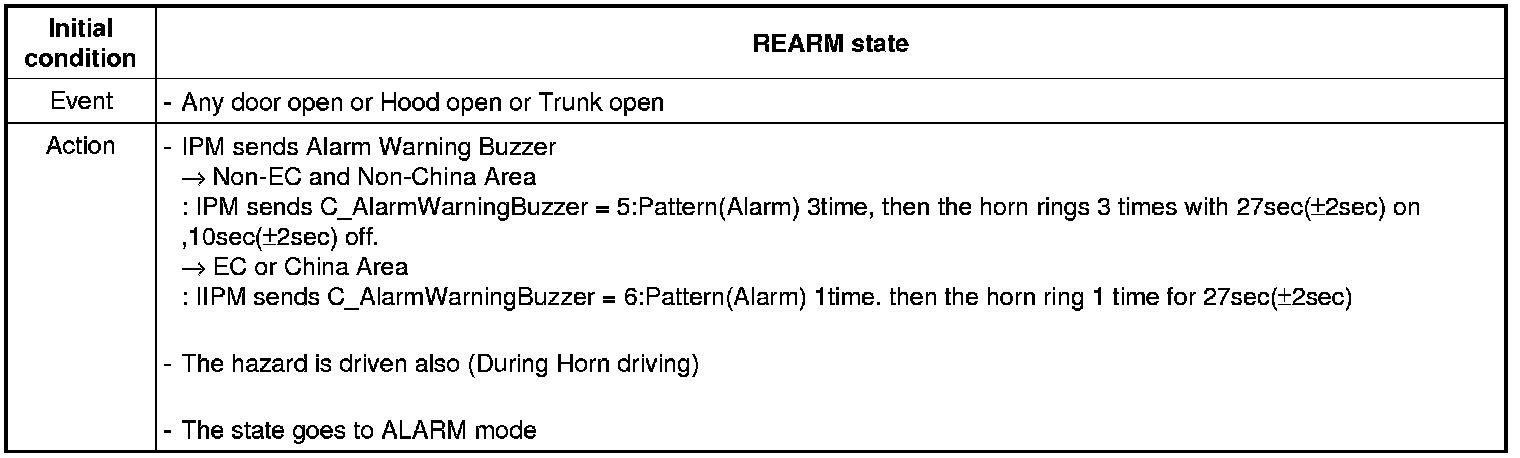

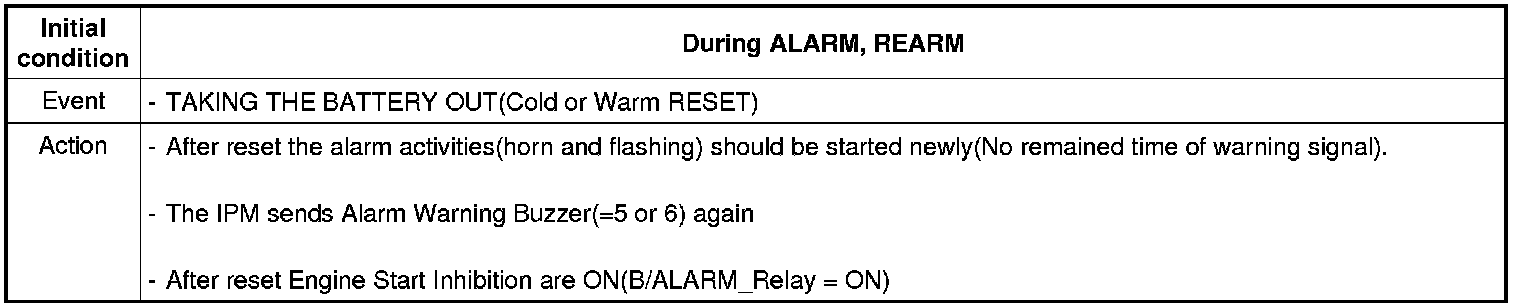

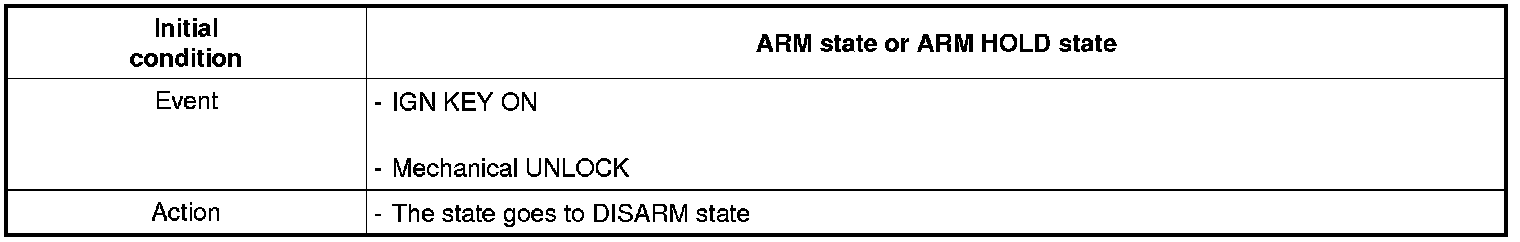

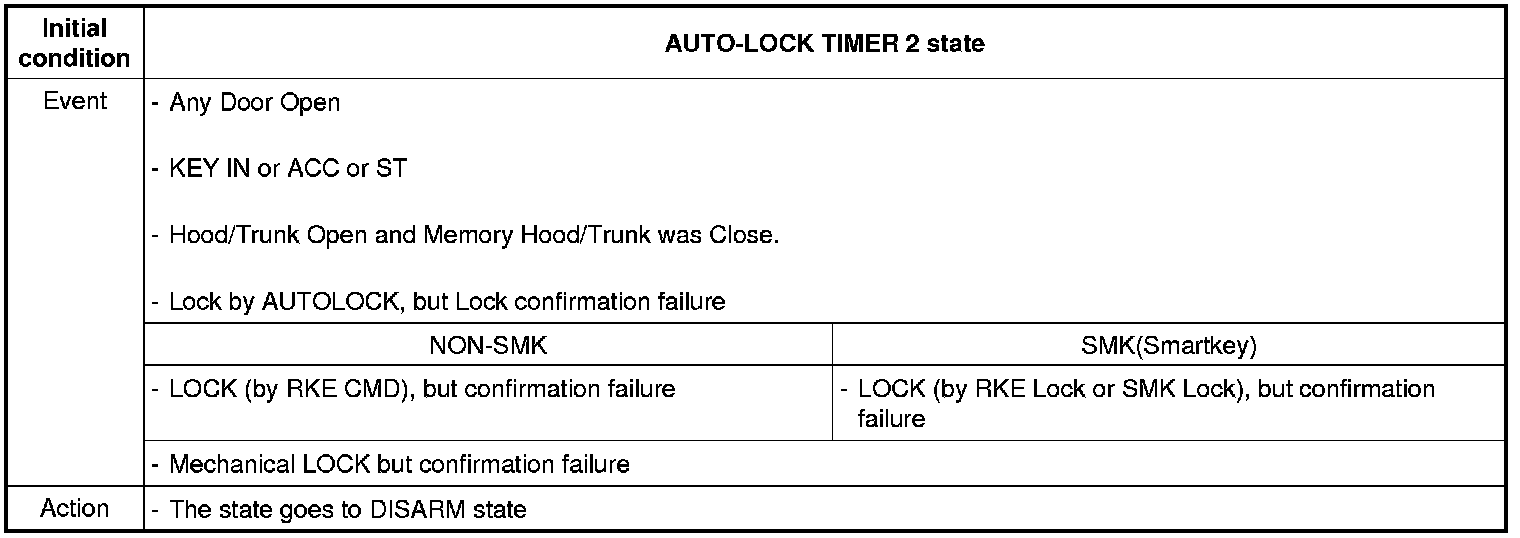

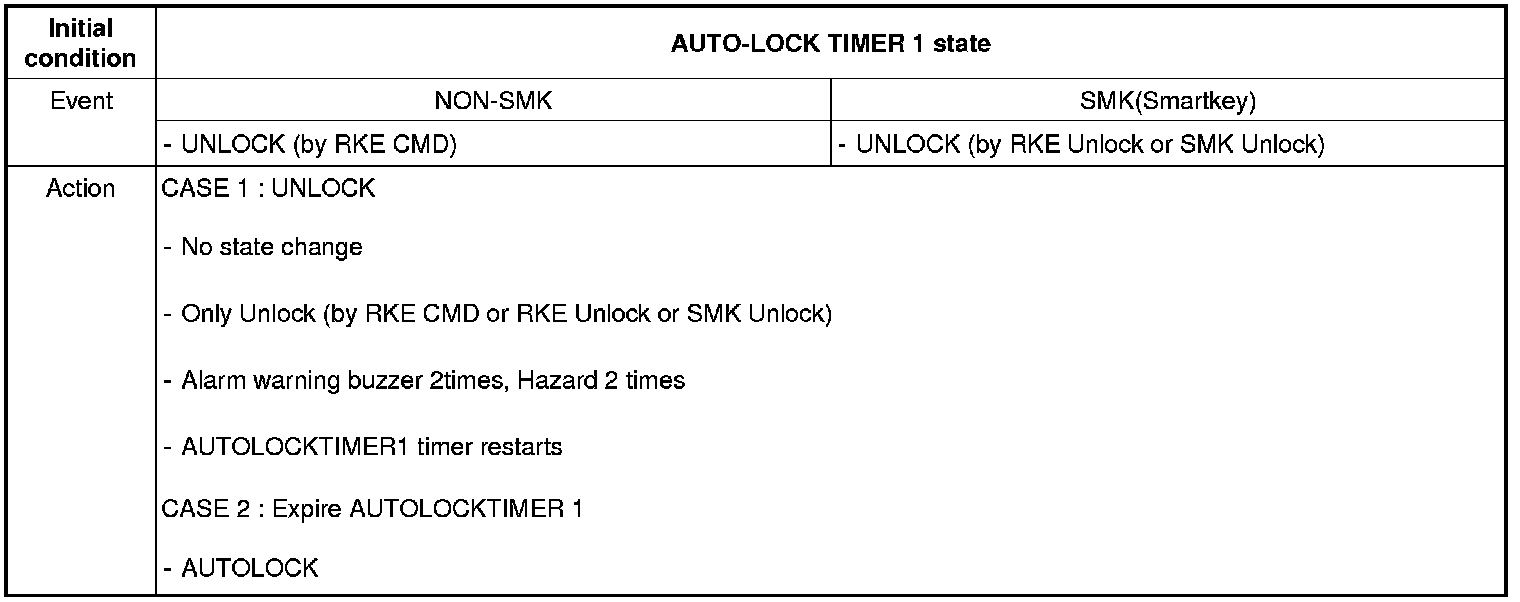

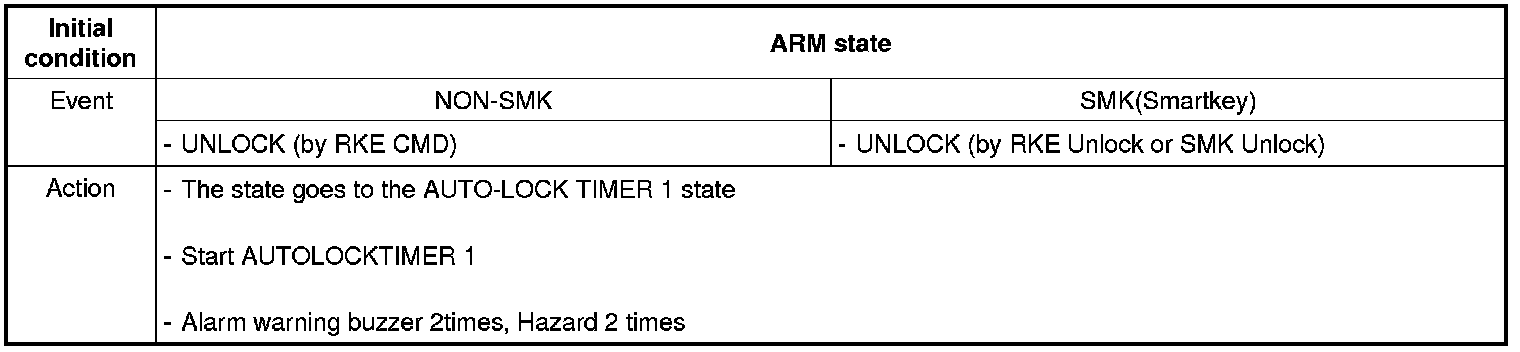

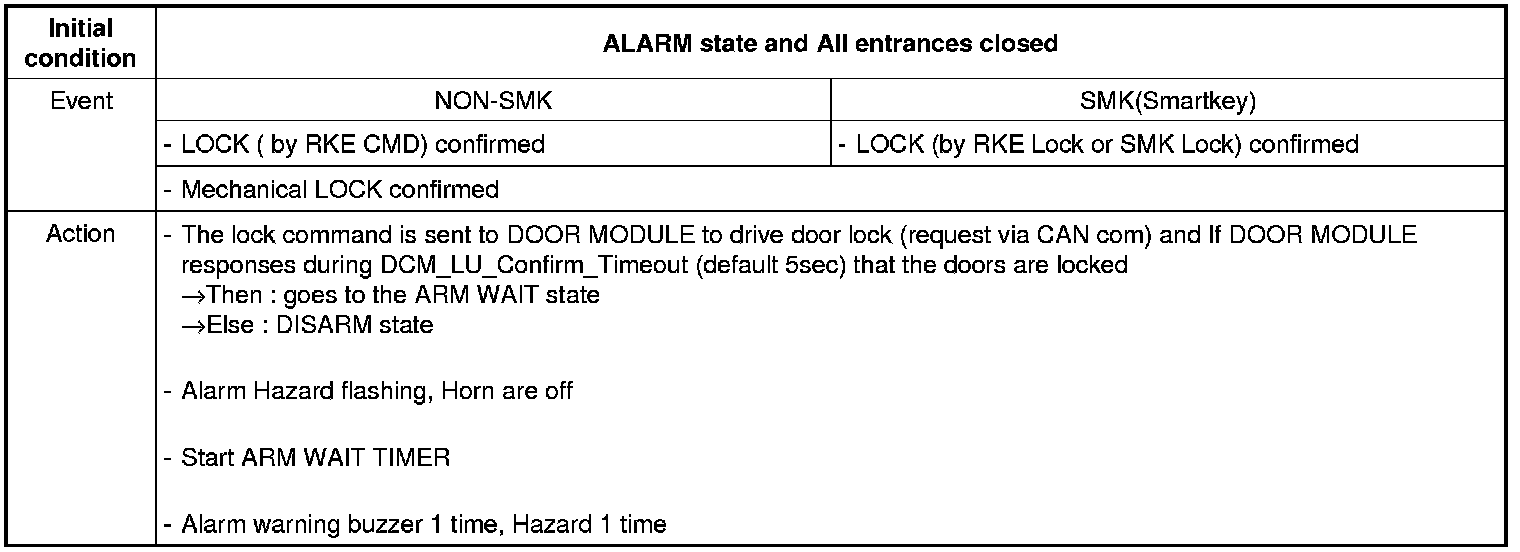

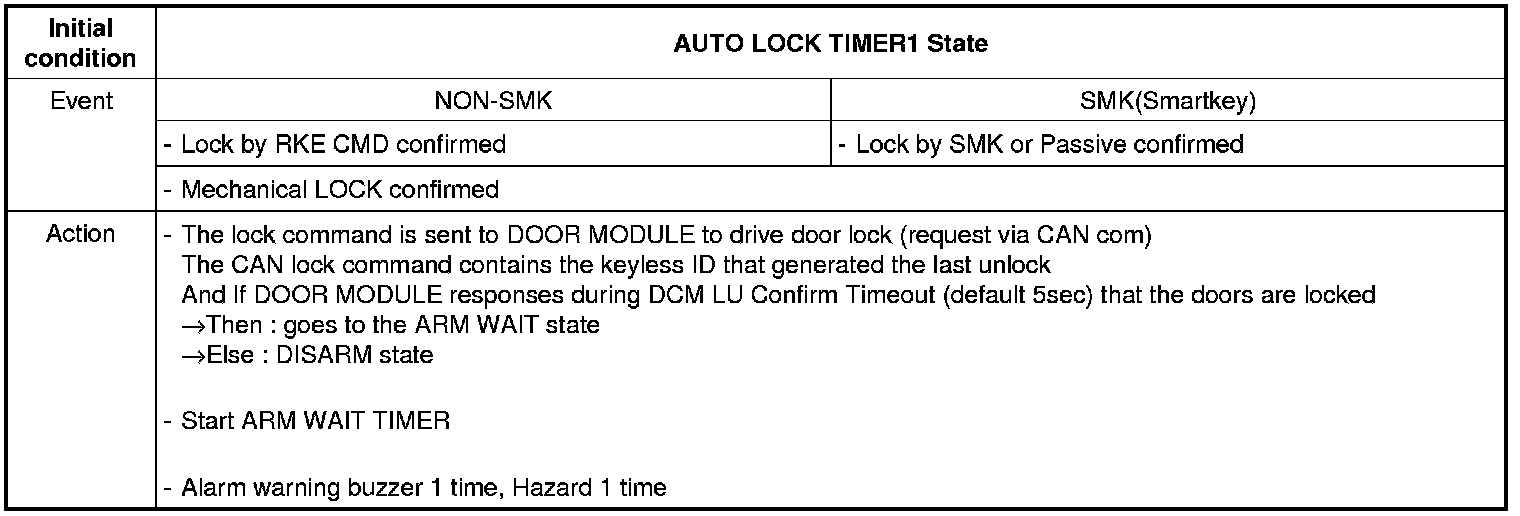

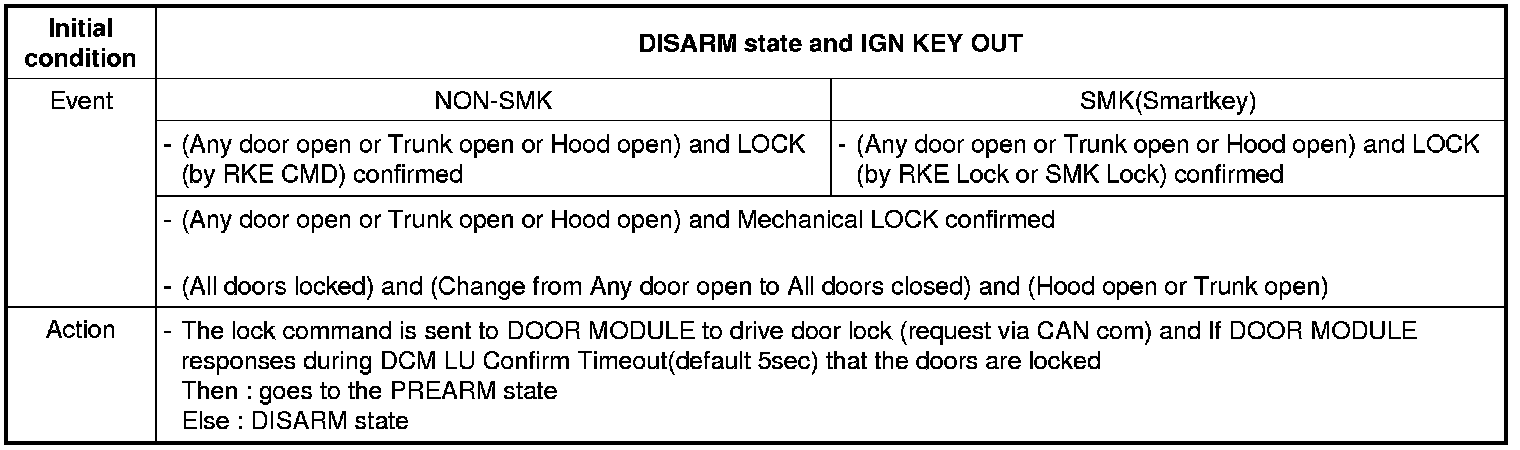

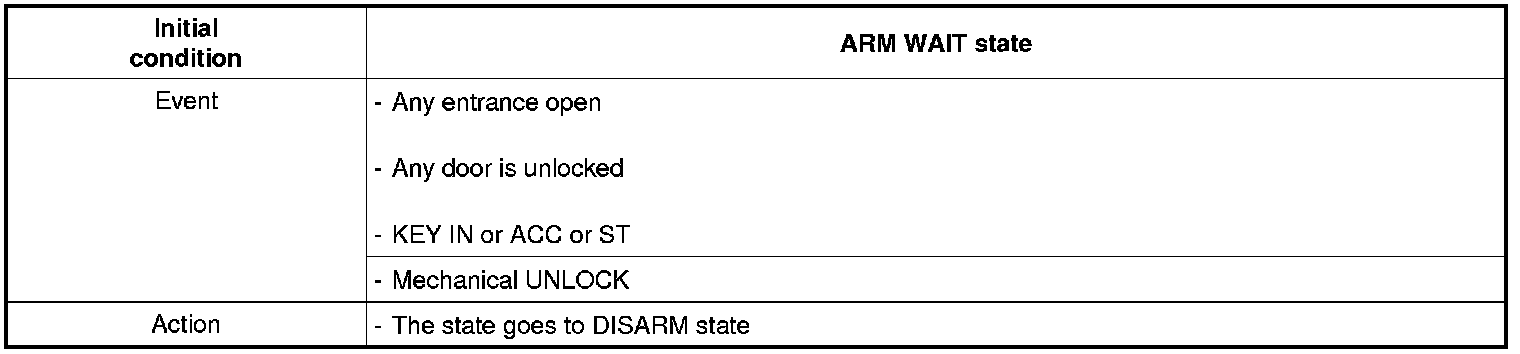

1. Condition 1

2. Condition 2

3. Condition 3

4. Condition 4

5. Condition 5

6. Condition 6

7. Condition 7

NOTE:
When entered DISARM mode, Horn OFF.

NOTE:
We can not disarm anti-theft by unlocking the door with mechanical key directly from the door lock if bi mecha lock unlock is not set

ARM

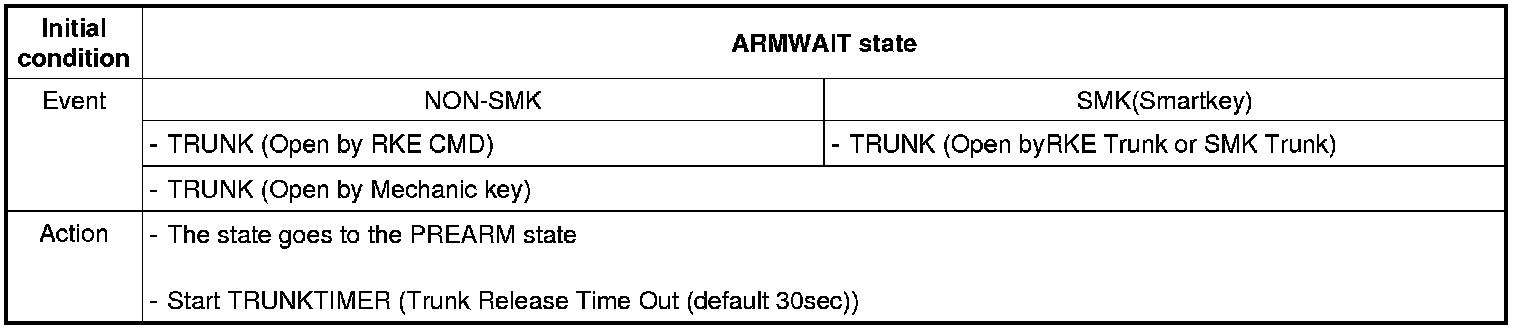

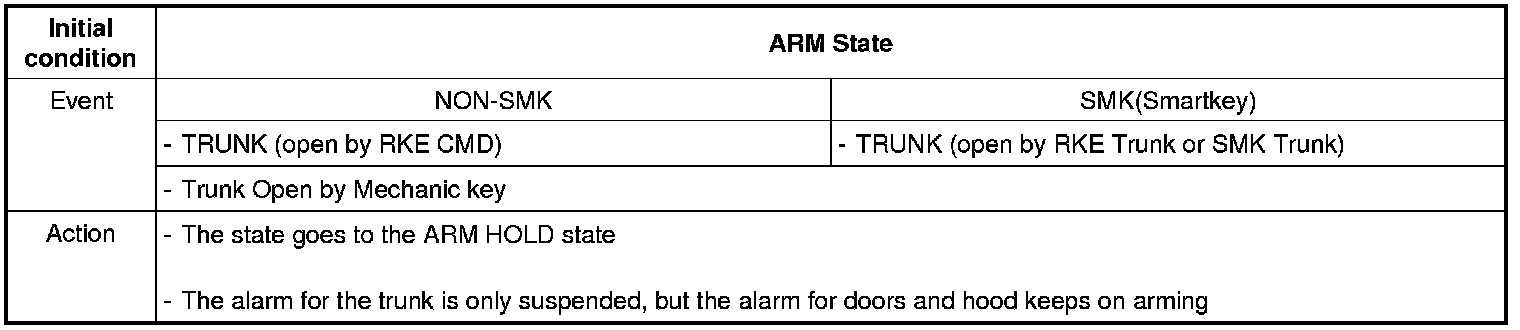

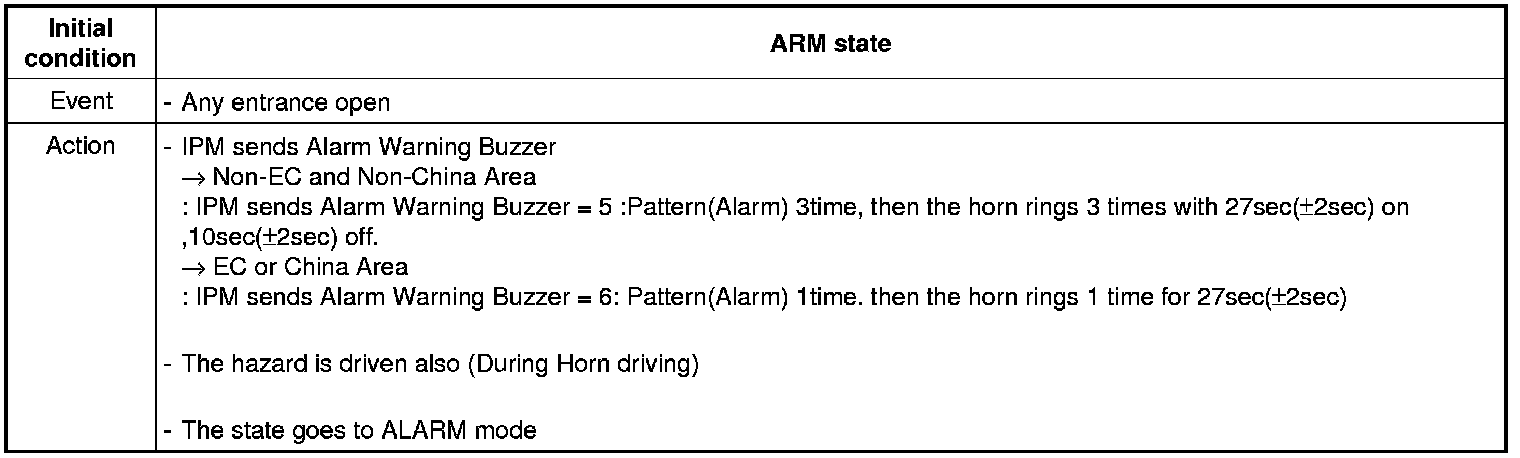

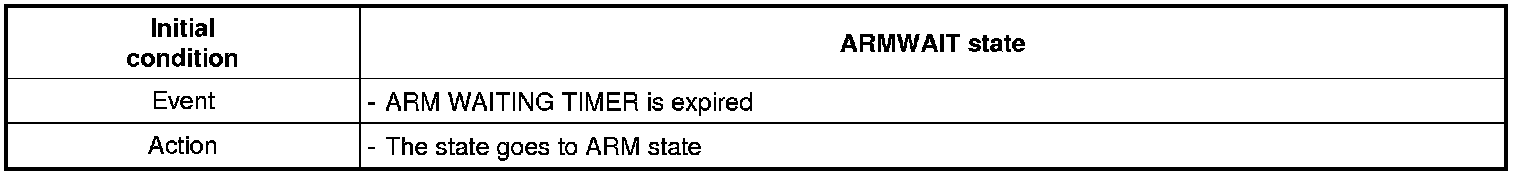

1. Condition 1
