Memory Positioning Systems: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

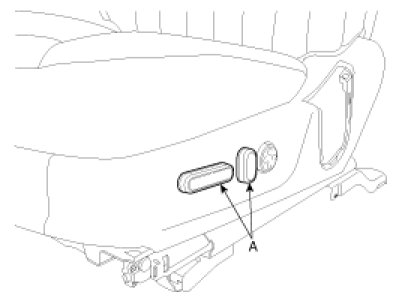

2. Remove the seat control switch (A).

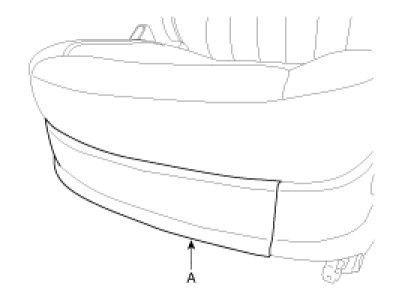

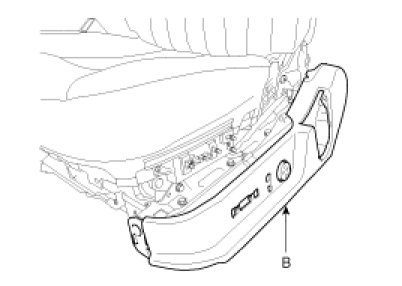

3. After loosening the mounting screws and crip, then remove the seat cover (A) and recliner cover (B).

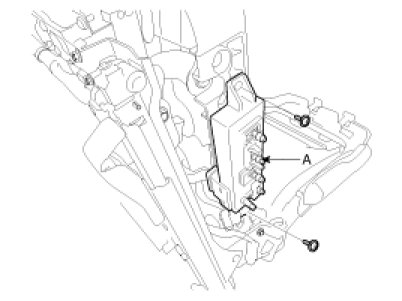

4. Loosen the power seat control switch (A) screws(2EA), then remove the connectors (2EA).






Installation

1. Connect the connectors and reassemble the power seat control switch.
2. Reassemble the recliner cover and seat front cover.
