Front Seat

Replacement

Seat Assembly Replacement

Driver's

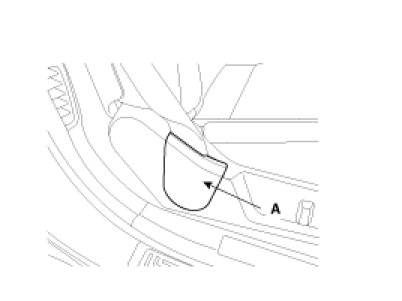

1. Remove the seat belt lower anchor cover (A).

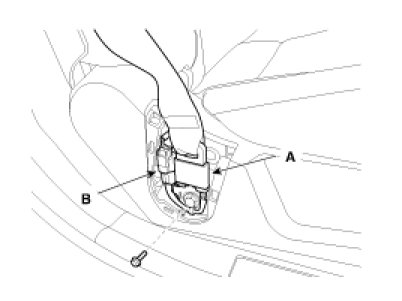

2. After loosening the seat belt lower anchor mounting bolt, remove the seat belt lower anchor (A).




3. Remove the seat assembly mounting cover.

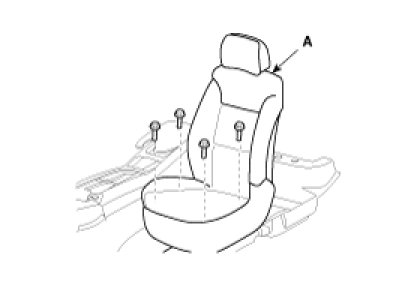

4. After loosening the seat assembly mounting bolts, remove the seat assembly (A).

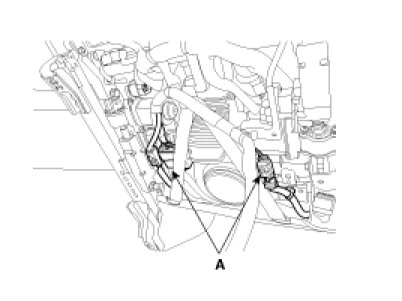

5. Disconnect the connectors (A), and remove the seat assembly.




6. Installation is the reverse of removal.

Passenger's
1. Remove the seat belt lower anchor cover (A)




2. After loosening the seat belt lower anchor mounting bolt, remove the seat belt lower anchor (A).
3. Disconnect connector (B).

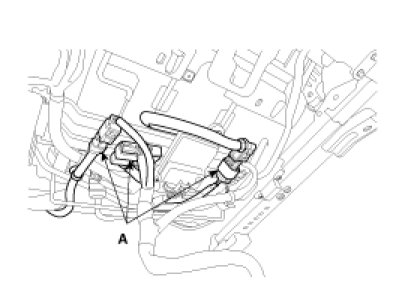

4. Disconnect the connectors (A), and remove the seat assembly.




5. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with Hi-scan (PRO) after replacing parts (Passenger's)
