Entertainment System Control Module
>>

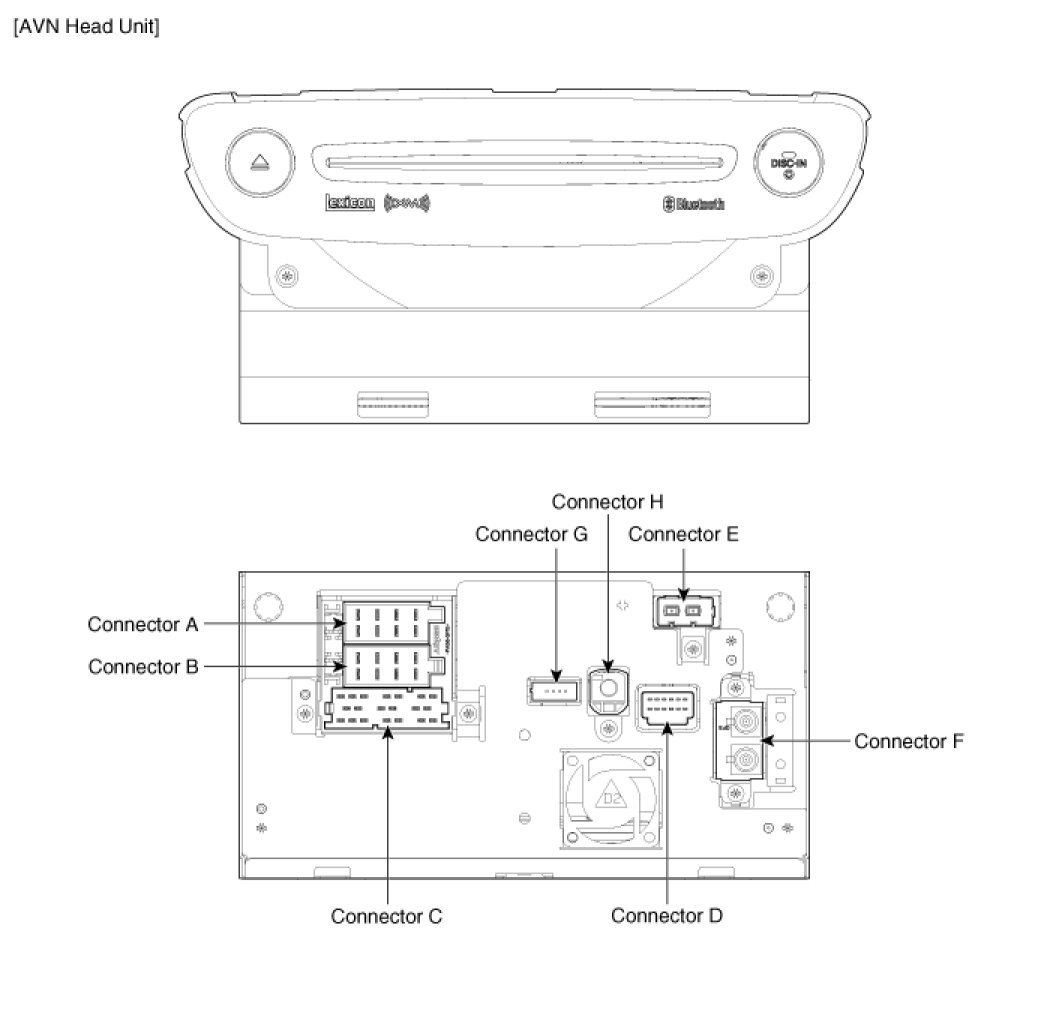

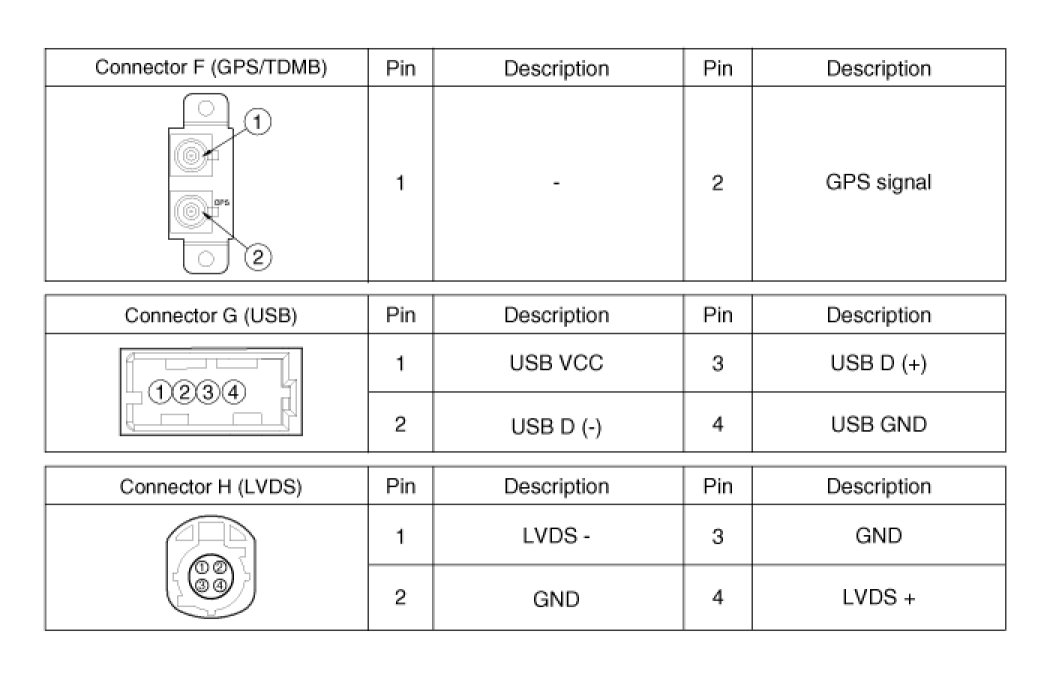

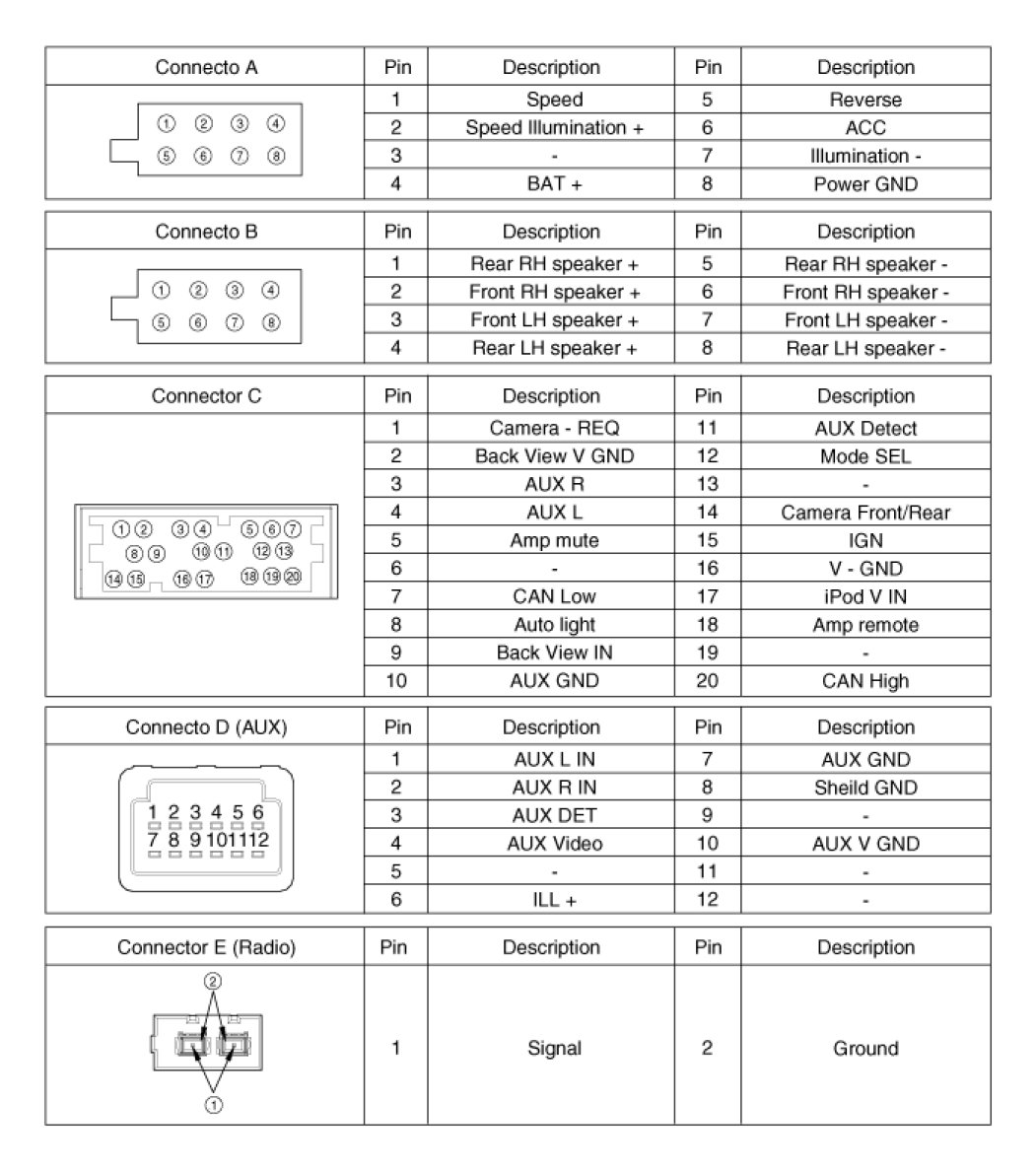

AVN(Audio Video Navigation) head unit
AVN(Audio Video Navigation) head unit
Components
