Driver/Vehicle Information Display

SD937-1 Driver Information System (DIS) (1):




SD937-2 Driver Information System (DIS) (2):




SD937-3 Driver Information System (DIS) (3):




SD937-4 Driver Information System (DIS) (4):




SD937-5 Driver Information System (DIS) (5):

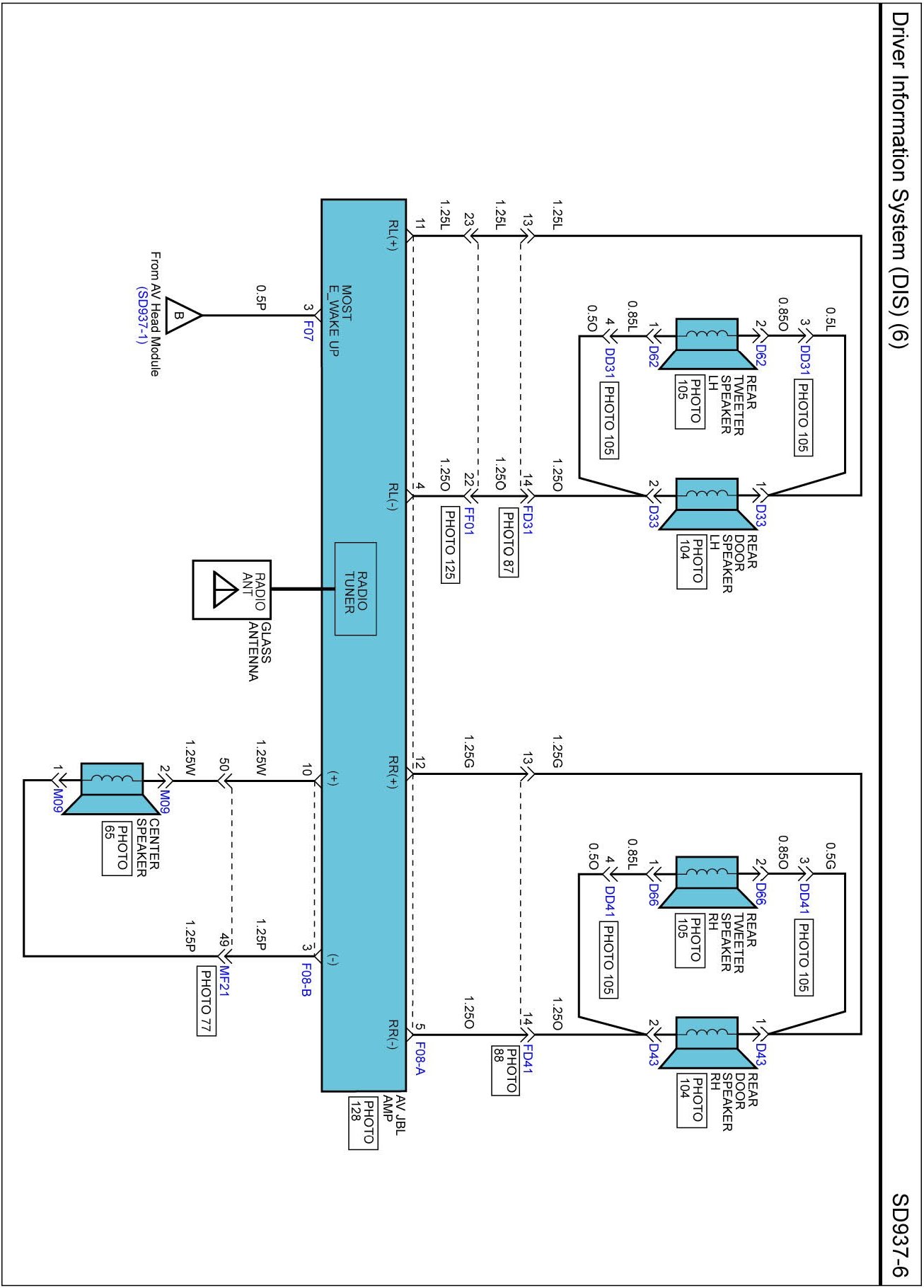

SD937-6 Driver Information System (DIS) (6):




Driver Information System (DIS) (7) Connector Pin Outs:




Driver Information System (DIS) (8) Connector Pin Outs:






Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams by Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that accompany most sets of system diagrams.
