MFI Control System (11)

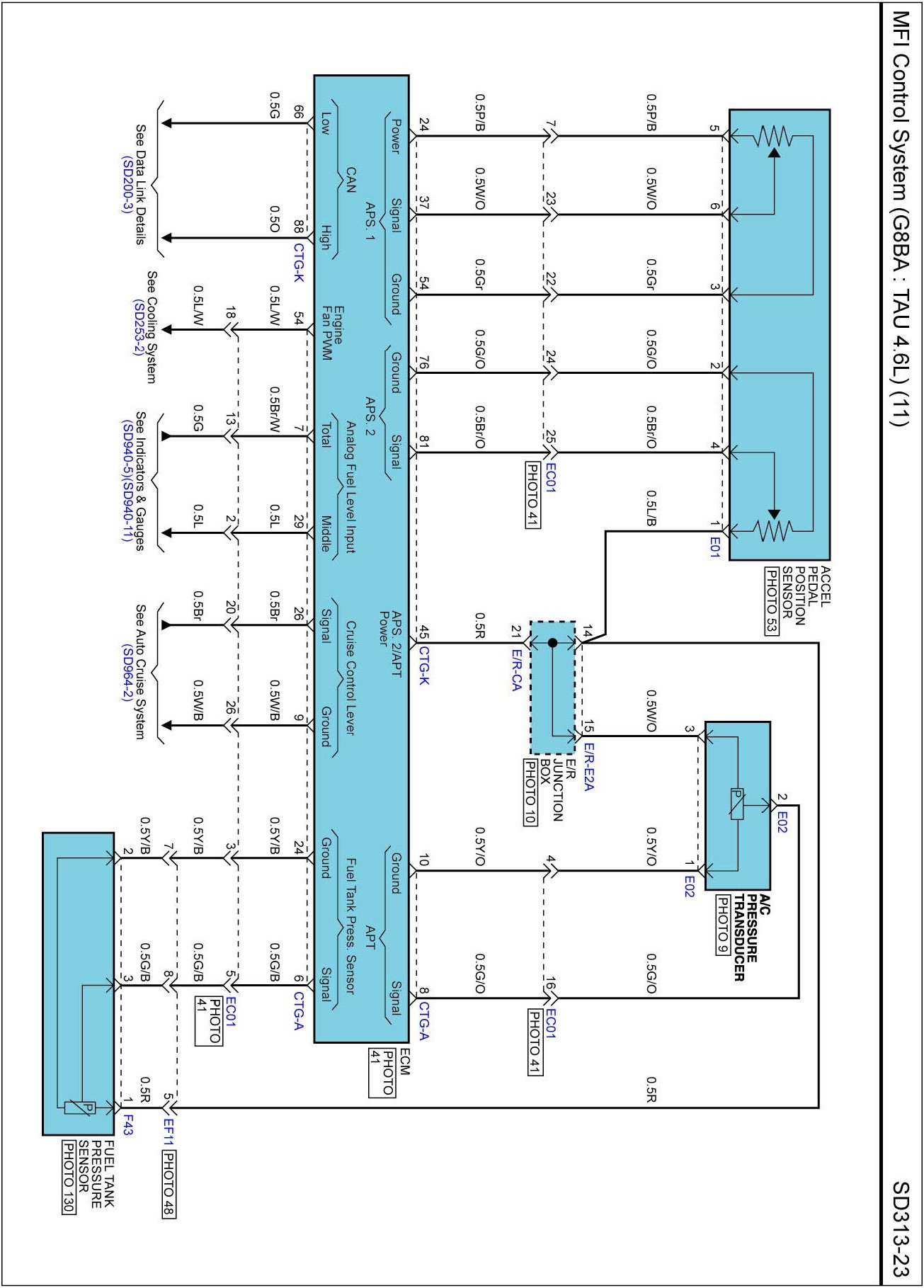

SD313-23 MFI Control System (11):

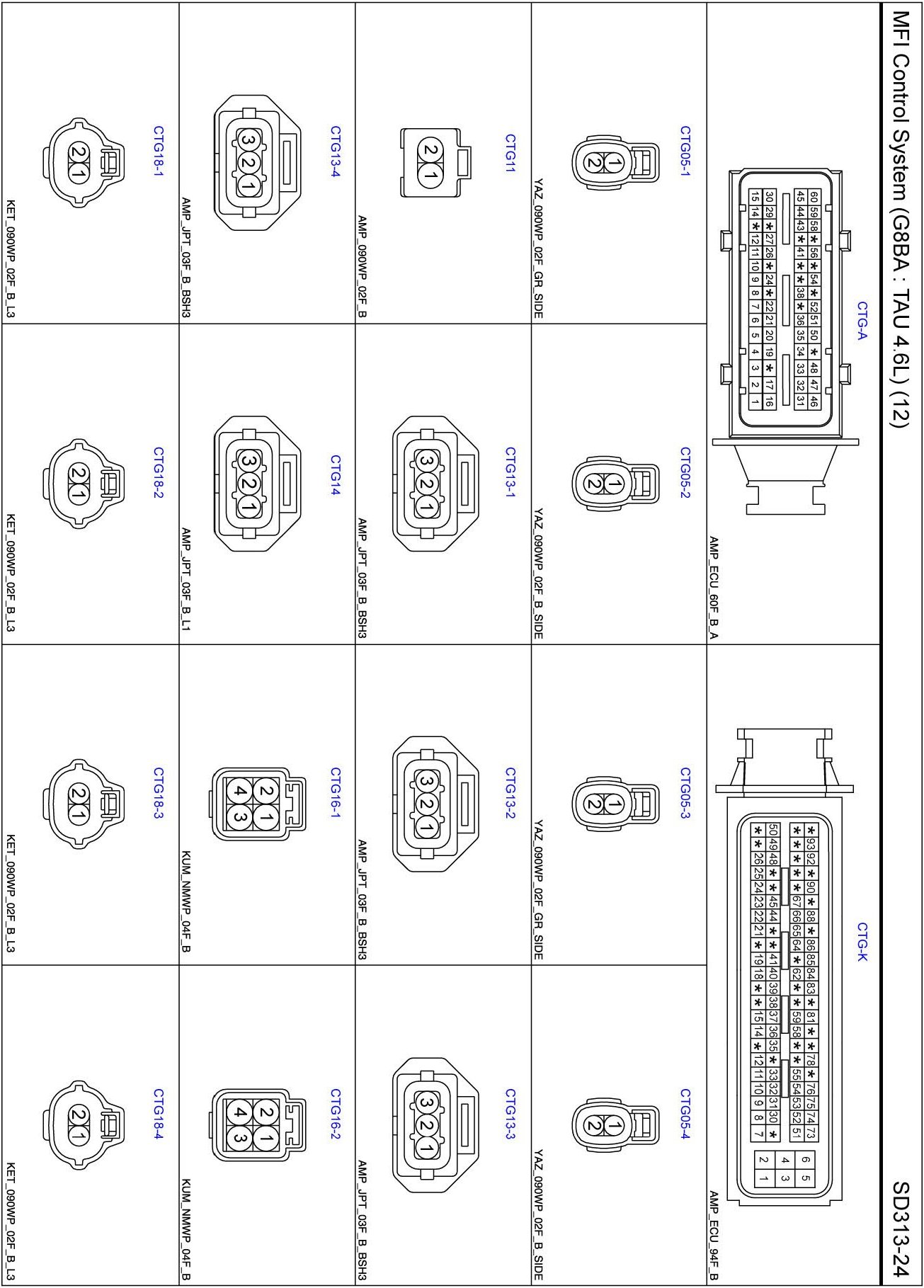

MFI Control System (12) Connector Pin Outs:

MFI Control System (13) Connector Pin Outs:

MFI Control System (14) Connector Pin Outs:

Previous Diagram MFI Control System (10)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
