Front Seat Belt

Replacement

Front Seat Belt Replacement

CAUTION:
- When installing the front seat belt, make sure not to damage the pretensioner.

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the following items fist:
A. Front seat assembly
B. Door scuff trim

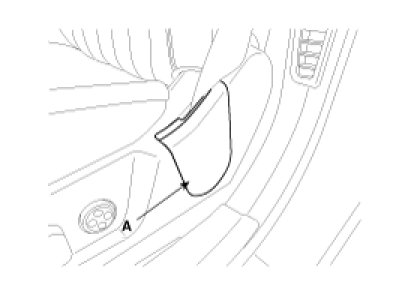

3. Remove the seat belt lower anchor cover (A).

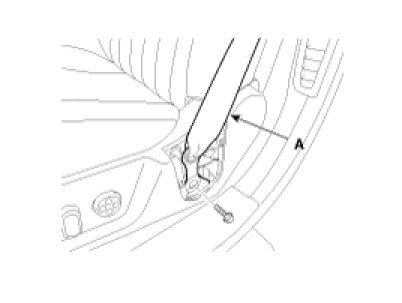

4. Loosen the lower anchor mounting bolt (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)





5. Remove the center pillar lower trim.
6. Remove the center pillar upper trim.
7. Remove the upper anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

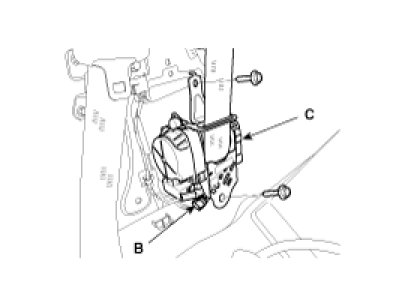

8. After disconnecting the pretensioner connector lock pin, remove the SQUIB connector (B), Loosen the mounting bolt, then remove the pretensioner (C).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

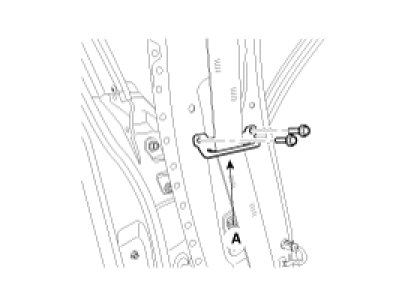

9. Remove the seat belt guide bracket (A).




10. Installation is the reverse of removal.
