Evaporator Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

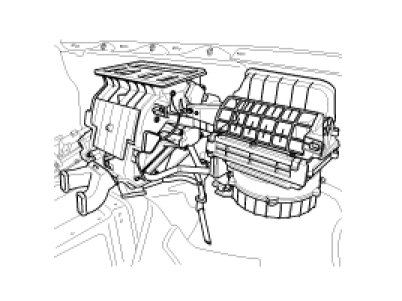

2. Remove the crash pad.

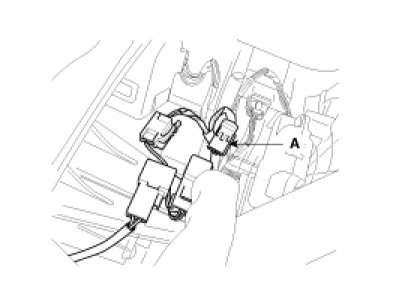

3. Disconnect the evaporator sensor connector (A).




4. Remove the evaporator temperature sensor (A), by pulling it after rotating 90° in a counter clock wise direction.





CAUTION:
- Take care that evaporator core pins are not bent.

5. Installation is the reverse order of removal.
