Fluid Pan, A/T

Oil Pan

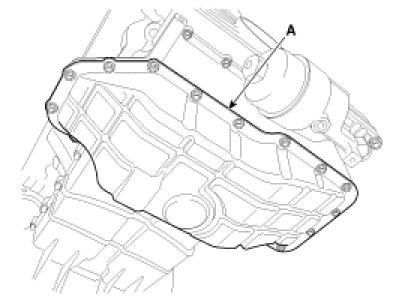

Install the upper oil pan.






Uniformly tighten the bolts in several passes.

Tightening torque 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)







Install the lower oil pan.






Uniformly tighten the bolts in several passes.

Tightening torque 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
