Water Pump
>>
Water Pump
Water Pump
Water Pump

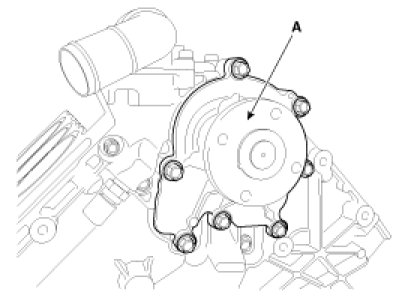

Install the water pump (A).
Tightening torque
19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)
