Passenger Compartment Fuse Details (5)

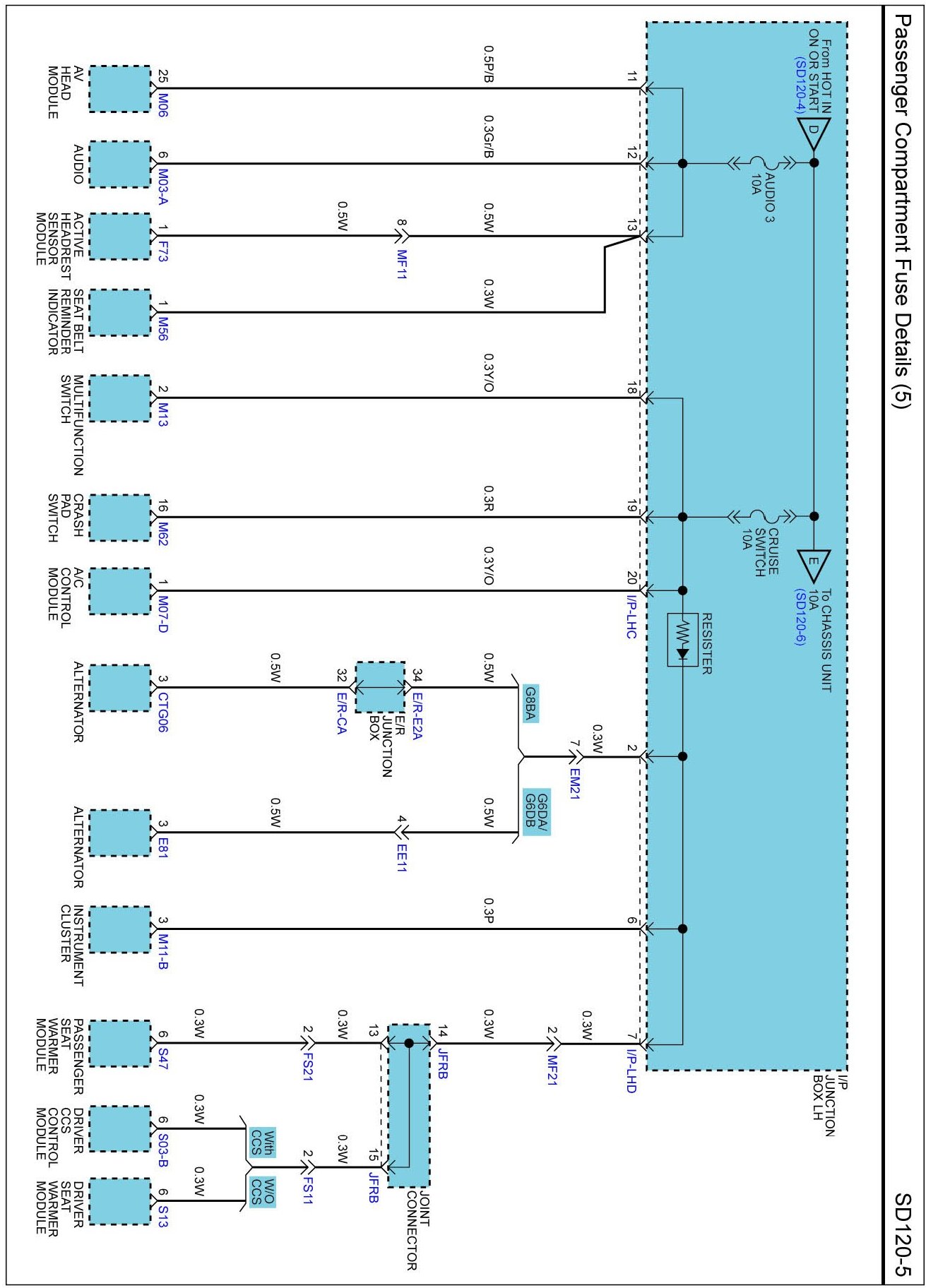

SD120-5 Passenger Compartment Fuse Details (5):






Next Diagram Passenger Compartment Fuse Details (6)

Previous Diagram Passenger Compartment Fuse Details (4)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
