Power Distribution (5)

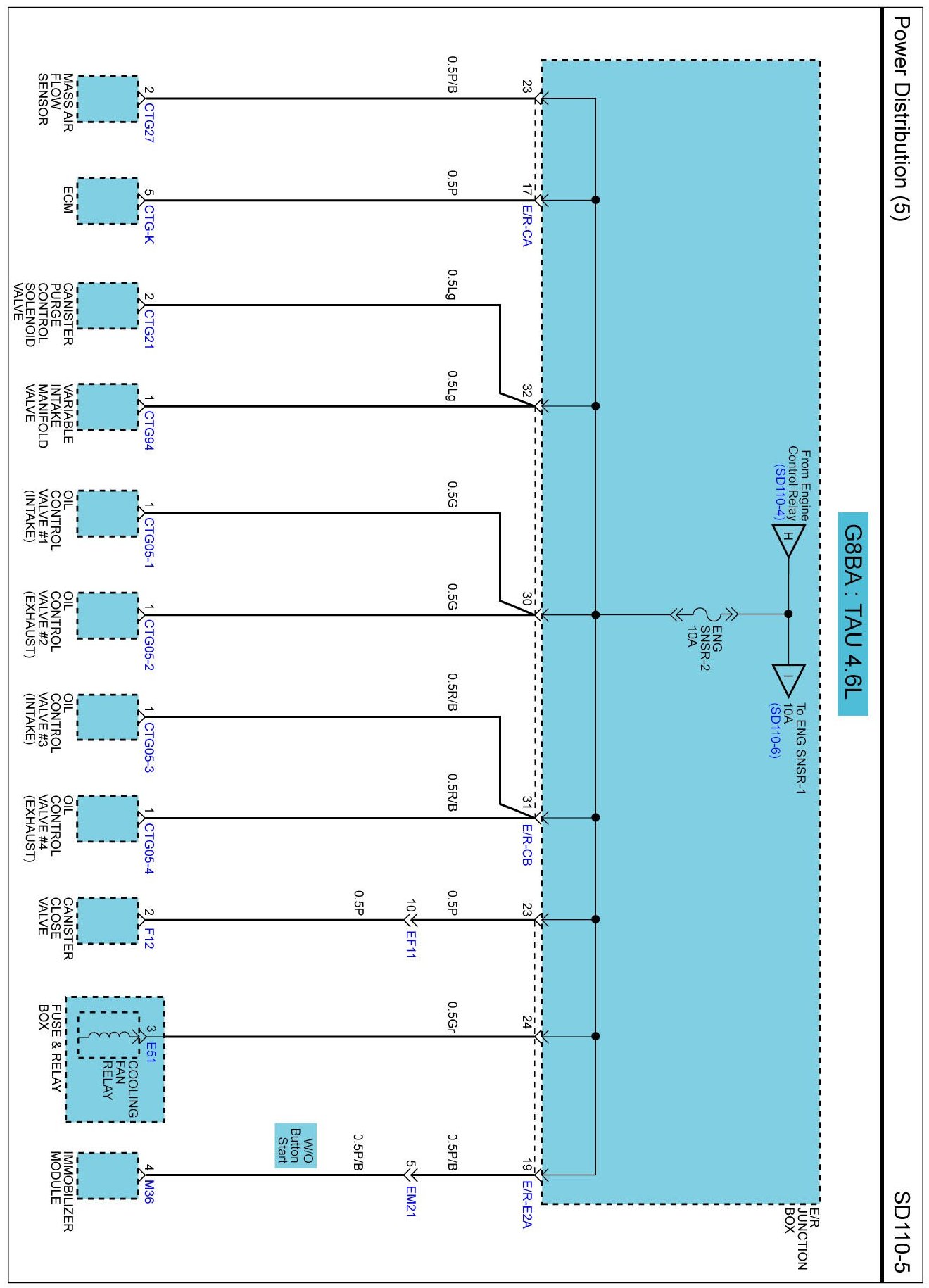

SD110-5 Power Distribution (5):

Next Diagram Power Distribution (6)

Previous Diagram Power Distribution (4)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
