Start / Stop Switch: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel(A).

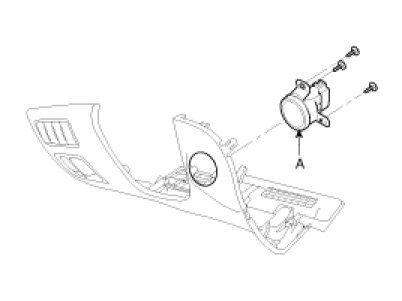

3. Remove the start/stop button (A) after loosening a mounting screw and connector.






Installation

1. Install the connector.
2. Install the start/stop button.
3. Install the crash pad lower panel.
