Smart Key Unit

Removal

Smart Key Unit
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel (A). Avoid damaging retaining clip.




3. After loosening the smart key unit mounting nuts and disconnect the connector, remove the smart key unit (A).









RF Receiver
1. Disconnect the negative (-) battery terminal.
2. After loosening the mounting screws and bolts, then remove the glove box (A).




3. Remove the glove box housing connector (A).




4. After loosening the mounting nuts and connector (A), then remove the RF receiver (B).









Interior 1 Antenna
1. Disconnect the negative (-) battery terminal.
2. Remove the main crash pad (B) after removing the bolts and nuts.




3. Remove the interior 1 antenna (A) after removing the nut and connector.





Interior 2 Antenna
1. Disconnect the negative (-) battery terminal.

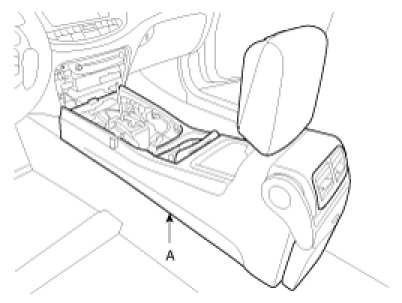

2. Remove the floor console assembly (A) after removing the bolts and nuts.




3. Remove the interior 2 antenna (A) after removing the nut and connector.





Interior 3 Antenna
1. Disconnect the negative (-) battery terminal.
2. Remove the rear seat assembly.
3. Remove the package tray trim (A) after removing the screws.




4. Remove the interior 3 antenna (A) after removing the nut and connector.





Trunk Antenna
1. Disconnect the negative (-) battery terminal.
2. Remove the trunk carpet (A).




3. Remove the trunk antenna (A) after removing the nut and connector.





Exterior Bumper Antenna
1. Disconnect the negative (-) battery terminal.
2. Remove the rear bumper.
3. After loosening the antenna connector on the rear bumper and nuts(2EA), remove the exterior bumper antenna (A).





Buzzer
1. Disconnect the negative (-) battery terminal.
2. Remove the fender (A).




3. Remove the buzzer (B) in the clip hole after disconnecting the connector on the side rail panel.

Door Outside Handle
1. Disconnect the negative (-) battery terminal.
2. Disconnect the connector after removing the door trim (A).




3. After loosening the mounting bolt, then remove the key holder (A).




4. Remove the outside handle (A) by sliding it rearward.





Trunk Lid Switch
1. Disconnect the negative (-) battery terminal.
2. Remove the Trunk lid panel (B).




3. Remove the trunk lid switch from the trunk lid switch assembly (A) after loosening the bolts.






Installation

Smart Key Unit
1. Install the smart key unit and connector.
2. Install the crash pad lower panel.
3. Connect the negative (-) battery terminal and check the smart key system.

RF Receiver
1. Install the connector and RF receiver.
2. Install the glove box housing connector and glove box.
3. Connect the negative (-) battery terminal and check the smart key system.

Interior 1 Antenna
1. Install the interior 1 antenna and connector.
2. Install the main crash pad.
3. Connect the negative (-) battery terminal and check the smart key system.

Interior 2 Antenna
1. Install the interior 2 antenna and connector.
2. Install the floor console assembly.
3. Connect the negative (-) battery terminal and check the smart key system.

Interior 3 Antenna
1. Install the interior 3 antenna and connector.
2. Install the package tray trim and rear seat assembly.
3. Connect the negative (-) battery terminal and check the smart key system.

Trunk Antenna
1. Install the trunk antenna and connector.
2. Install the trunk carpet.
3. Connect the negative (-) battery terminal and check the smart key system.

Exterior Bumper Antenna
1. Install the exterior bumper antenna and connector.
2. Install the rear bumper.
3. Connect the negative (-) battery terminal and check the smart key system.

Buzzer
1. Install the buzzer in the clip hole and connector on the side rail panel.
2. Install the fender.
3. Connect the negative (-) battery terminal and check the smart key system.

Door Outside Handle
1. Install the outside handle.
2. Install the door trim.
3. Install the negative (-) battery terminal and check the smart key system.

Trunk Lid Switch
1. Install the trunk lid switch and trunk lid panel.
2. Install the negative (-) battery terminal and check the smart key system.
