Repair Procedures

Replacement

1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire from rear hub.

CAUTION:
Be careful not to damage to the hub bolts when removing the rear wheel and tire.

3. Remove the split pin(, then remove castle nut(A) and washer from the front hub under applying the break.

Tightening torque :
200 - 280N.m (20.0 - 28.0kgf.m, 144.6 - 202.5lb-ft)





4. Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire as shown in the illustration.

Tightening torque :
80 - 100N.m (8.0 - 10.0kgf.m, 57.8 - 72.3lb-ft)





5. Remove the rear brake disc(A).




6. Disconnect the parking brake cable and(A). From operating lever(B).








7. Remove the rear brake lining(refer the BR group-rear brake).
8. Remove the wheel speed sensor(A) and the parking brake cable(B) from the rear axle carrier.

Tightening torque :
7 - 11N.m (0.7 - 1.1kgf.m, 5.0 - 7.9lb-ft)









9. Remove the assist arm(A) and the trailing arm(B) from the rear axle carrier.

Tightening torque :
80 - 90N.m (8.0 - 9.0kgf.m, 57.8 - 65lb-ft)










Tightening torque :
100 - 120N.m (10.0 - 12.0kgf.m, 72.3 - 86.7lb-ft)






NOTE:
Remove the rear assist arm ball joint by using the special tool(09568-4A000).

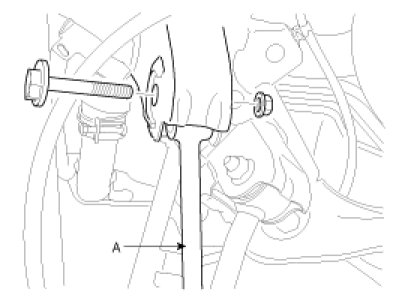

10. Remove lower arm mount bolt(A) from rear axle carrier.

Tightening torque :
140 - 160N.m (14.0 - 16.0kgf.m, 101.2 - 115.7lb-ft)





11. Loosen the upper arm link mount bolt and then remove the upper arm link(B).

Tightening torque :
120 - 140N.m (12.0 - 14.0kgf.m, 86.7 - 101.2lb-ft)





12. Loosen the strut mount bolt(A) and then remove the knuckle assembly.




13. Remove the hub assembly mount bolts(B) from the rear axle carrier(A).








14. Installation is the reverse order of removal.
