Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the blower under cover.

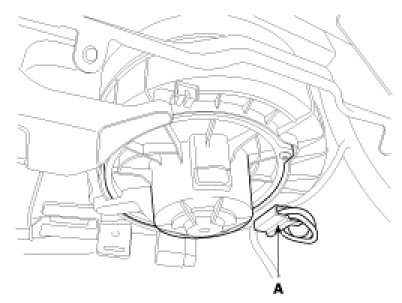

3. Disconnect the connector (A) of the blower motor.

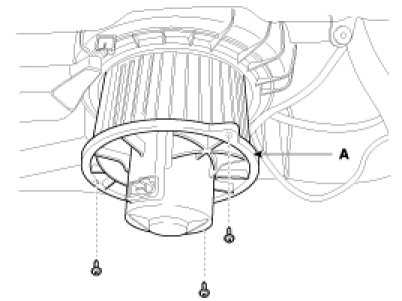

4. Remove the blower motor (A) after loosening the mounting screws.




5. Installation is the reverse order of removal.
