Timing Chain Tensioner

Timing Chain Tensioner

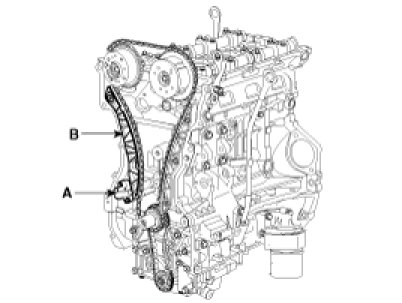

Install timing chain tensioner arm (B).

Tightening torque 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Install timing chain auto tensioner (A) and remove set pin.

Tightening torque 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
