Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the console side cover.

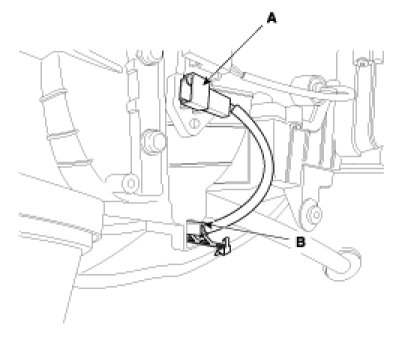

3. Disconnect the connector (A) of water temperature sensor and then remove the water temperature sensor (B) by pulling out.




4. Installation is the reverse order of removal.

NOTE:
Take care that wire of water temperature sensor is not to be damaged.
