Electronic Throttle Actuator: Service and Repair

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the air cleaner assembly .

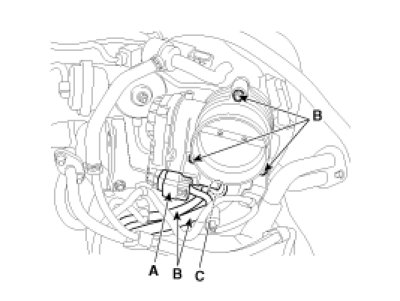

3. Disconnect the ETC module connector (A).
4. Disconnect the coolant hoses (B).
5. Remove the stay installation bolt (C) and the ETC module installation bolts (D), and then remove the ETC module from the engine.






Installation

CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

1. Installation is reverse of removal.

ETC Module installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
ETC Module Stay installation bolt:
15.7 - 25.5 N.m (1.6 - 2.6 kgf.m, 11.6 - 18.8 lb-ft)
