Seat Back: Service and Repair

Replacement

Seat Back Cover Replacement

1. Remove the lumbar sport lever.
2. After disconnecting the scuff band (A), remove 4 clips (C) and pull the back panel (B) downward to release the upper hooks (D).






3. After disconnect the protector (A) from the back
frame, then disconnect the connector (B).

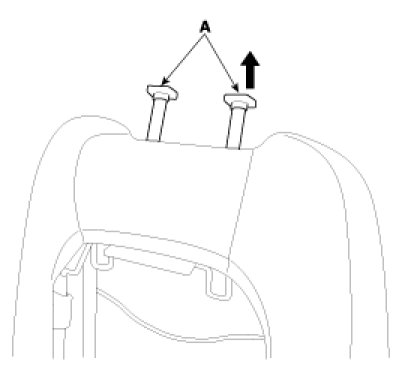

4. Remove the headrest and headrest guide (A).

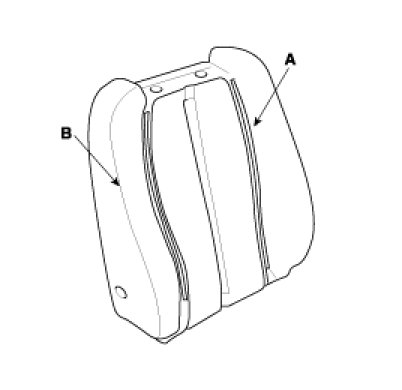

5. After removing the hogring clips (A) on the front of seat back remove the seat back trim cover (B).






6. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with Hi-scan (pro) after replacing parts (passengers).
