Repair Procedures
Replacement
1. Disconnect negative (-) battery terminal.

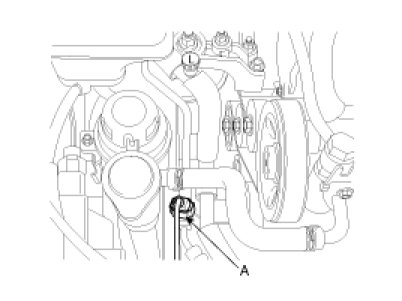

2. Disconnect A/C pressure transducer connector(A) (3P) from wiring harness.
3. Remove the A/C pressure transducer.
CAUTION:
Take care that liquid suction pipe is not bent.
4. Installation is the reverse order of removal.
Tightening torques :10 - 12 N.m (1.02 - 1.22 kgf.m, 7.4 - 8.8 lb-ft)
