Fuel Filler Neck: Service and Repair
Removal

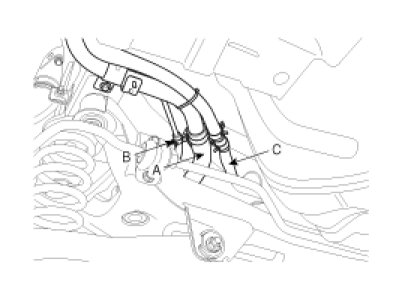

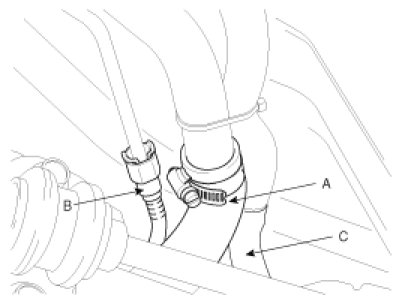

1. Disconnect the fuel filler hose (A), the leveling hose (B) and the vapor hose (C).
[ULEV]
[SULEV]

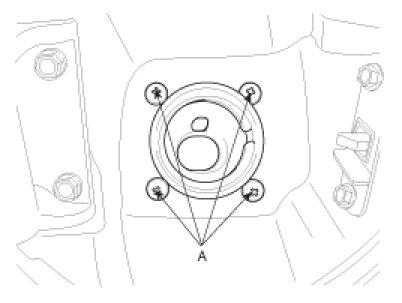

2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).
3. Remove the rear-LH wheel, tire, and the inner wheel house.

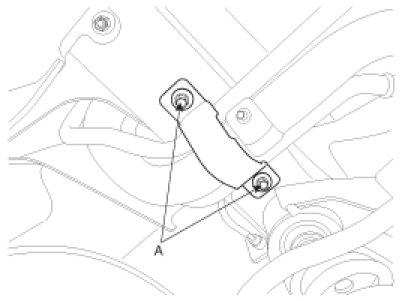

4. Remove the bracket mounting bolts (A) and remove the filler-neck assembly.
Installation
1. Installation is reverse of removal.
