Disassembly

Disassembly

1. Remove the brake disc from the hub.
2. Remove the snap ring.

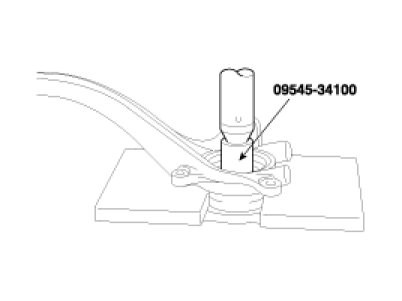

3. Using the special tool (09545-34100), disconnect the hub from the knuckle.

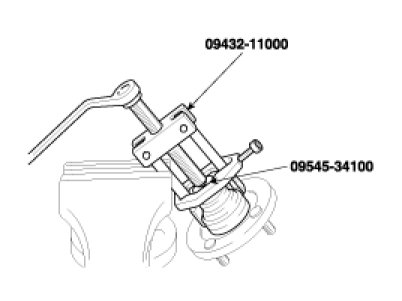

4. Using the special tools (09432-11000, 09545-34100), remove the wheel bearing inner race from the hub.

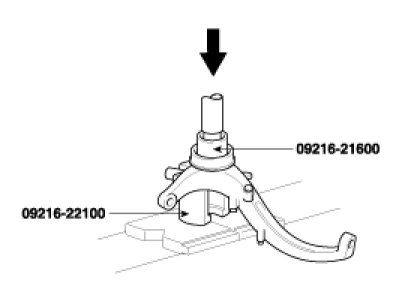

5. Using the special tools (09216-21600, 09216-22100), remove the wheel bearing outer race from the knuckle.
