Crash Pad

Replacement

Heater Control Unit Replacement

1. Remove the center fascia panel.

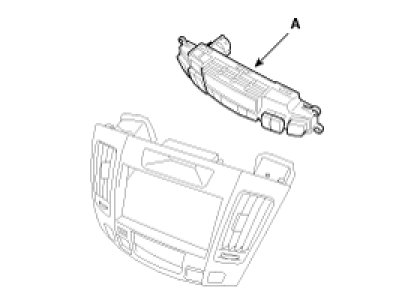

2. After loosening the heater control mounting screws, remove the heater control unit (A).

3. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
