Repair procedures
Replacement 1.
Disconnect the negative (-) battery terminal.
2.

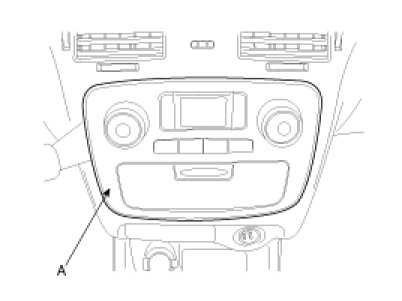

Remove the center facia panel (A) after pulling it by using a regular screwdriver (-).
3.

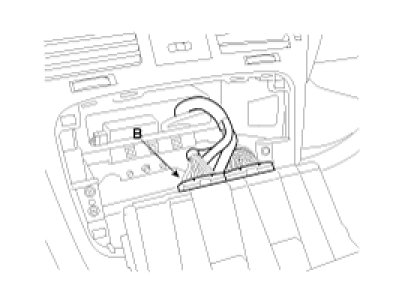

Disconnect the connectors (B) from the center facia.
4.

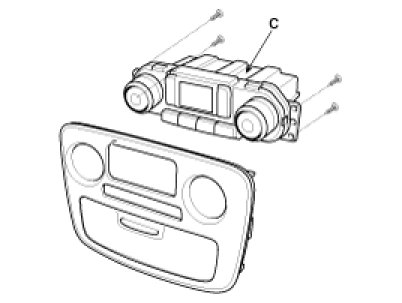

Remove the heater & A/C controller (C).
5.
Install in the reverse order of removal.
