Repair procedures





Removal

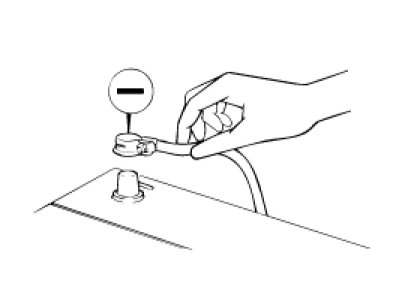

1. Disconnect the negative(-) cable from battery and wait for at least 3 minutes.






2. Remove ignition key from the vehicle.
3. Remove the center console. .

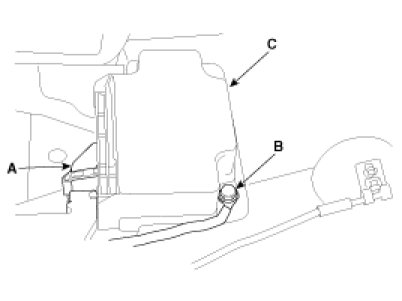

4. Pull back the lever, then disconnect the SRSCM harness connector(A). Loosen the bolt(B), then remove the SRSCM(C).






SRSCM mounting bolt :
0.97 - 1.39 kgf.m(9.5 - 13.6 Nm ,7.0 - 10.03 lb-ft)

5. Installation is the reverse of removal.

NOTE:
- Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
- Always use new bolts when installing the SRSCM.
