Axle Shaft

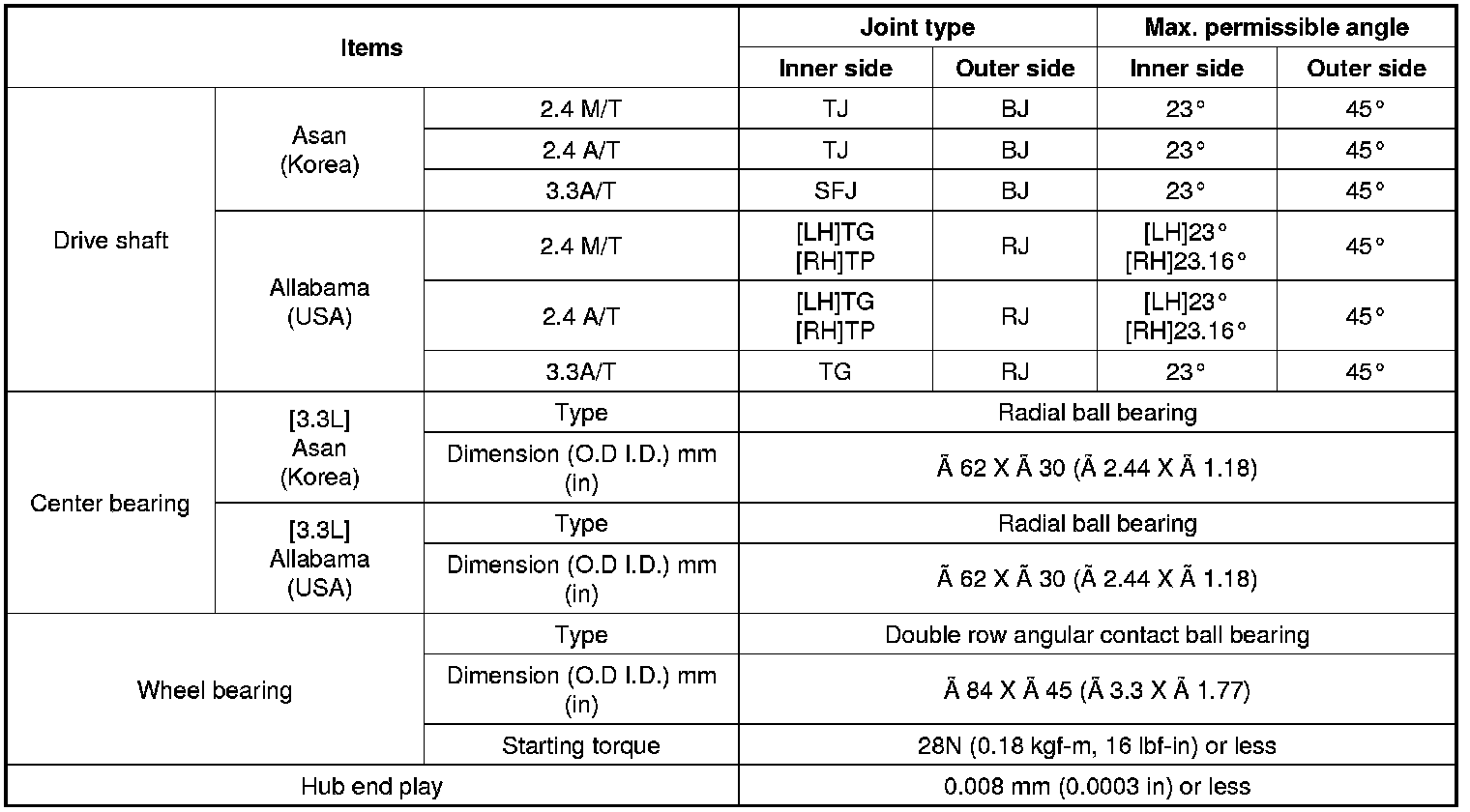

Specifications

-BJ : Birfield Joint (Asian)
-TJ : Tripod Joint (Asian)
-RJ : Rzeppa Joint (Alabama)
-SFJ : Shudderless Free ring Joint (Asian)
-TP : Tripod Joint (Alabama)
-TG : Tri Glide Joint (Alabama)

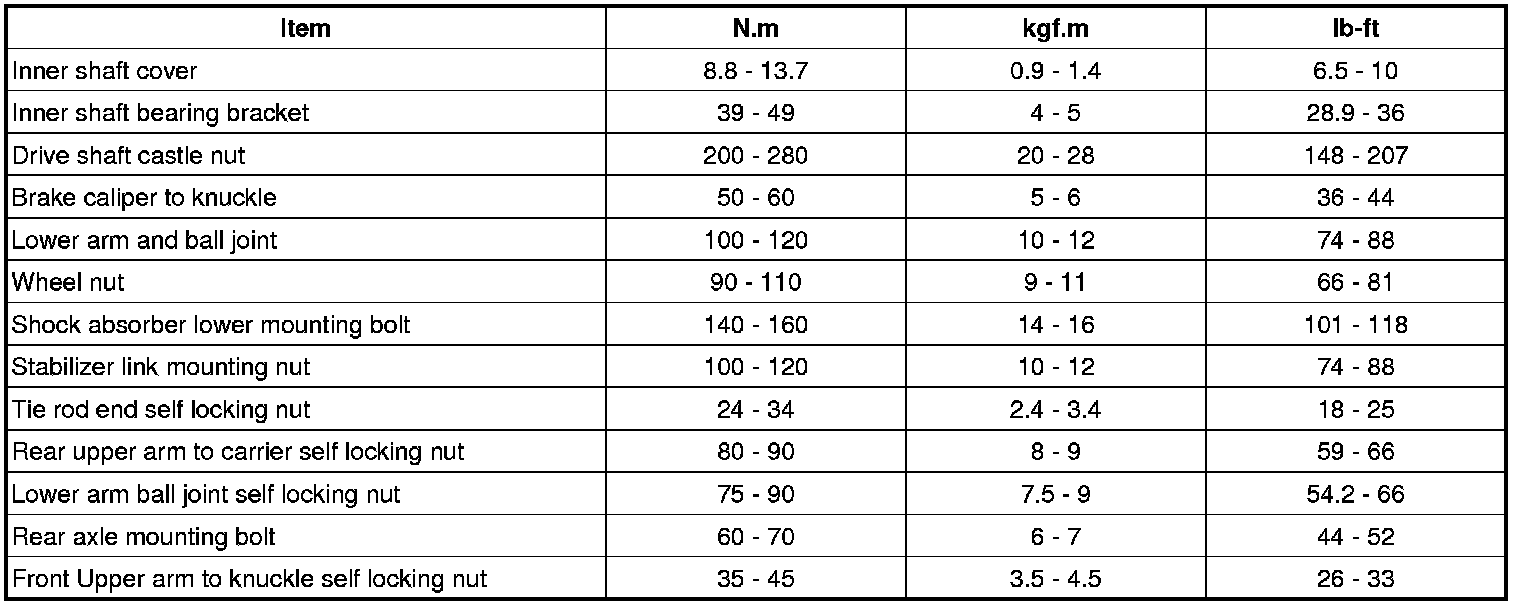

Tightening Torques

CAUTION: Replace self-locking nuts with new ones after removal.
