Timing Chain Tensioner
Timing Chain Tensioner

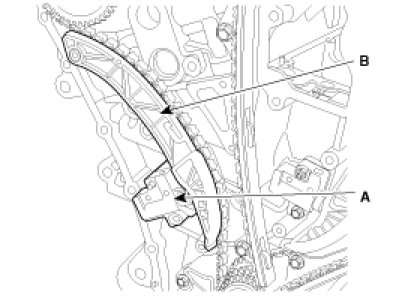

Install the RH timing chain tensioner arm(B)
Tightening torque 18.62 - 21.56 N.m (1.9 - 2.2 kgf.m, 13.74 - 15.91 lb-ft)
Install the RH timing chain auto tensioner(A)
Tightening torque 9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
