Water Pump

Water Pump

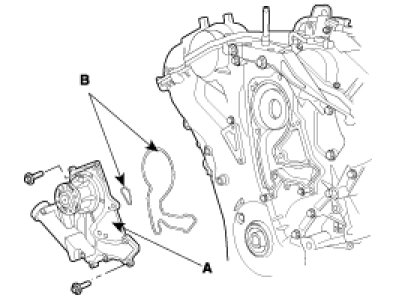

Install the water pump(A) and a new gasket (B) with 12 bolts.

Tightening torque
21.56 - 23.52 N.m (2.2 - 2.4 kgf.m, 15.91 - 17.36 lb-ft)
9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
