Front Door Window Regulator: Service and Repair

Replacement

Front Door Module

1. Remove the front door trim.
2. Remove the glass.
3. Remove the inside handle.
4. Remove the outside handle.

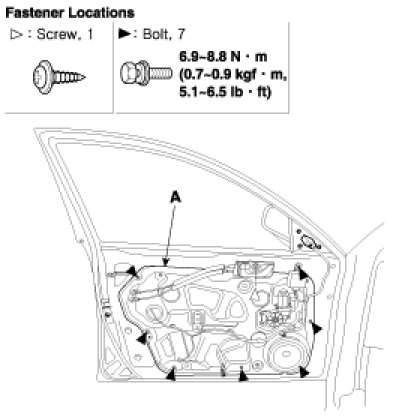

5. After loose the door module mounting bolts, remove the door module (A).

6. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door locks and opens properly.
