Transaxle Number

Transaxle Number

Manual (M6GF2)




1. Model
- S : M6GF2
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Plant of production
- J : Hwaseong (Korea)
4. Final gear ratio
- D : 5.071 / 3.737
5. Transaxle production sequence number
- 000001 - 999999

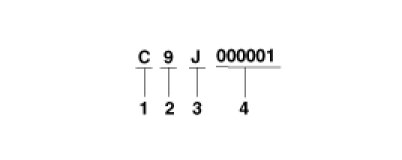

Manual (M5GF1)




1. Model
- C : M5GF1
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Gear ratio
- J : 4.533

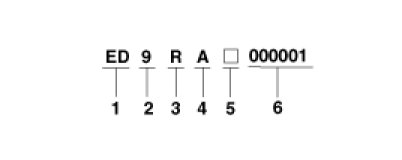

Automatic




1. Model
- EB: A6MF1 (Theta-II 2.0/2.4, 2WD, water cooling)
- ED: A6MF1 (Theta-II 2.0/2.4, 4WD, water cooling)
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Gear ratio
- V : 3.648
- R : 3.195
4. Detailed classification
- A : Theta-II 2.0/2.4 (A6MF1)
5. Spare
6. Transaxle production sequence number
- 000001 - 999999
