Power Mirror Switch: Testing and Inspection

Inspection

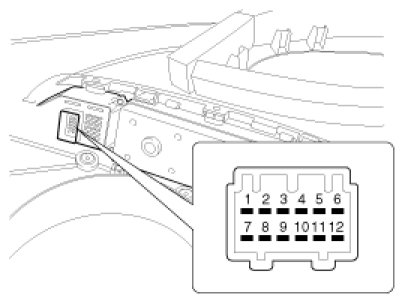

1. Remove the front door trim and power door mirror switch module (A).

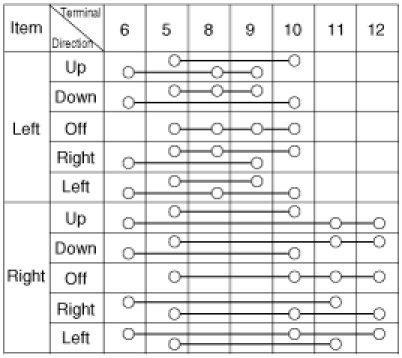

2. Check for the continuity between terminals of power door mirror switch according to the table.
