Seat Cover: Service and Repair

Replacement

Shield Cover Replacement

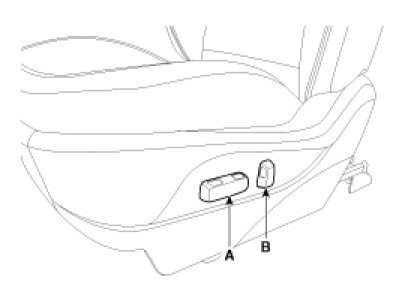

1. Remove the slide switch (A) and recliner switch (B).

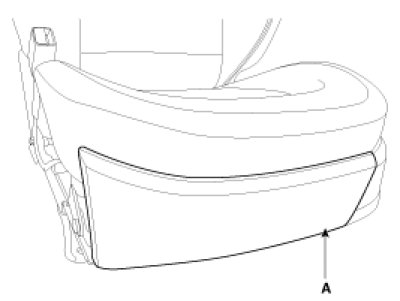

2. Using a screwdriver, remove the front shield cover (A).

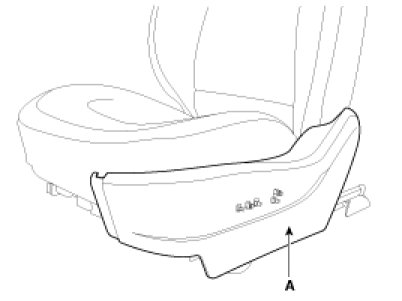

3. Using a screwdriver, remove the shield cover (A).

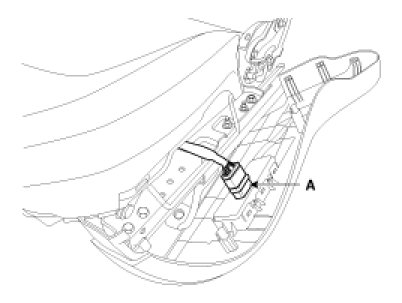

4. Disconnect the connector (A).




5. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with the GDS after replacing parts (passenger's)
