Seat Assembly Replacement

Replacement

Seat Assembly Replacement
1. Remove the seat mounting cover.

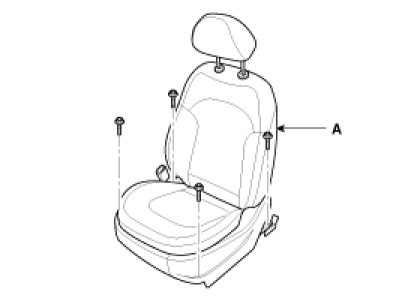

2. After loosening the seat assembly mounting bolts, remove the seat assembly (A).

Tightening torque :
44.1 - 58.8N.m (4.5 - 6.0kgf.m, 32.5 - 43.4lb-ft)

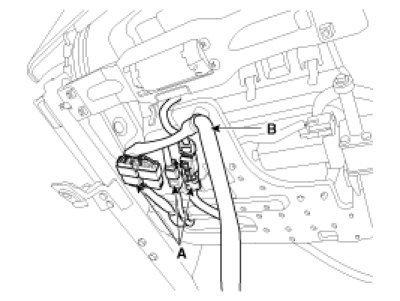

3. Disconnect the connector (A), and wirering (B).




4. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with the GDS after replacing parts (passenger's)

CAUTION:
SEAT MOUNTING BOLT INSTALLATION PROCEDURE
- Set the into the most rearward position. Check then each slide is locked, and then Tighten the front mounting bolt temporarily.
- Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. Check the front mounting bolt completely.
- Check that the seat operates to and fro smoothly and the locking portion locks properly.
