Trunk / Liftgate Weatherstrip: Service and Repair

Replacement

Tail Gate weatherstrip Replacement

CAUTION:
- Do not apply sealant to the body.

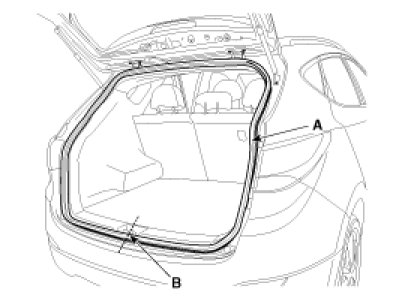

1. Remove the tail gate weatherstrip (A).




2. Installation is the reverse of removal.

NOTE:
- Install the weatherstrip aligned with canter line (B).
