Repair Procedures

Removal

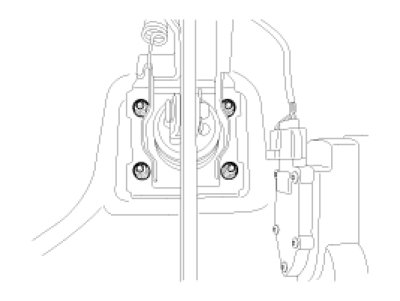

1. Remove the crash pad lower panel. .
2. Pull down steering column shaft after removing bolts and nuts.

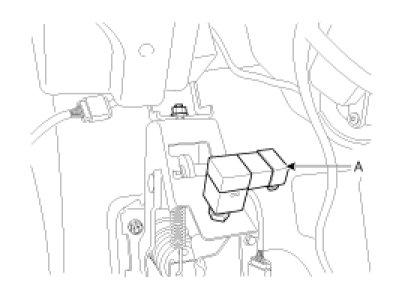

3. Disconnect the stop lamp switch connector (A).




4. Remove the brake pedal member mounting nut (A).

Tightening torque:
16.5 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

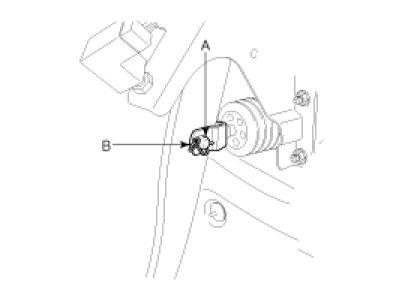

5. Remove the snap pin (A) and clevis pin (B).




6. Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

Tightening torque:
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)







Installation

1. Installation is the reverse of removal.

CAUTION:
- Before installing the pin, apply the grease to the clevis pin.
- Use a new snap pin whenever installing.

2. Adjust the brake pedal height and free play.
3. Check the brake pedal operation.
