Replacement

Replacement

Front brake pads

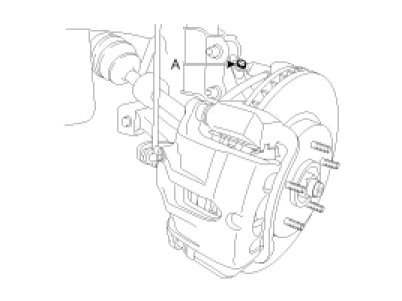

1. Remove the brake hose mounting bracket bolt (A).

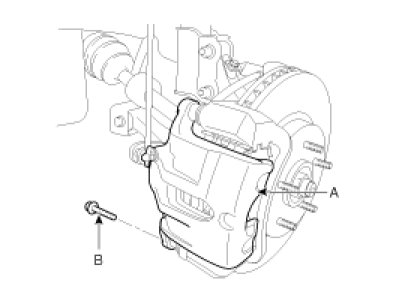

2. Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.

Tightening torque:
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

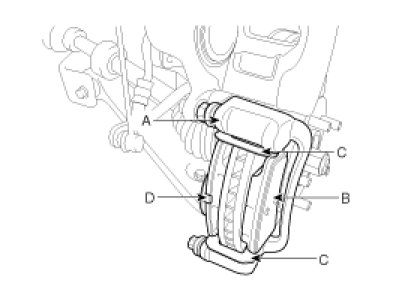

3. Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper bracket (A).
